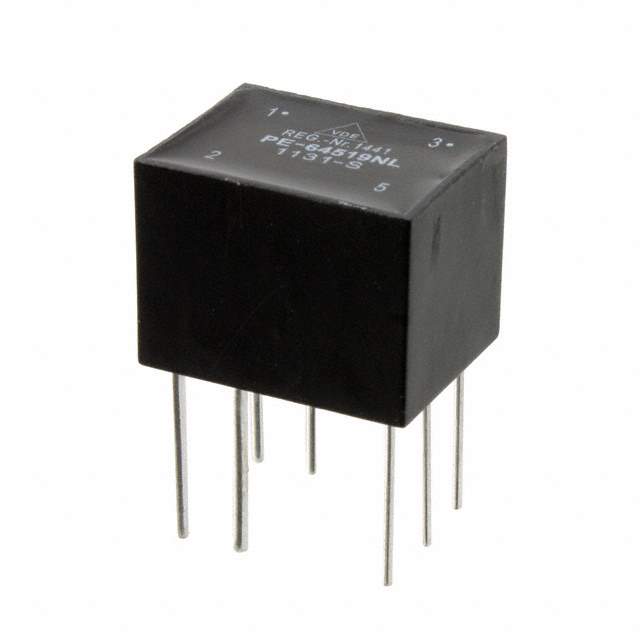

PE-64519 Real Image
Same model may have multiple batches, images only for reference.

PE-64519

Part No PE-64519
Manufacturer Pulse
Catalog Current Sense Transformers
Description XFRMR CURR SENSE 80.0MH T/H
Datasheet
PE-64519 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 20kHz to 200kHz
Type Invasive
Current Rating 20A
Inductance 80mH
DC Resistance (DCR) 200 Ohm Primary, 4.5 Ohm Secondary
Mounting Through Hole
Height - Seated (Max) 0.700" (17.78mm)
Termination Style PC Pin
Win Source Part Number 209767-PE-64519
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-64519 CAD Model

Description

The Pulse Electronics Corporation Invasive Transformer is a high-performance transformer designed for through-hole mounting.

  • Mounting: Through-hole
  • Current: 20A
  • Inductance: 80mH
  • Frequency Range: 20kHz to 200kHz
  • DC Resistance (DCR): 200 Ohm Primary, 4.5 Ohm Secondary
  • Height: 0.700" (17.78mm)
  • Packaging: Tray
  • Termination Style: PC Pin
  • Status: Active
  • Popularity: Medium
