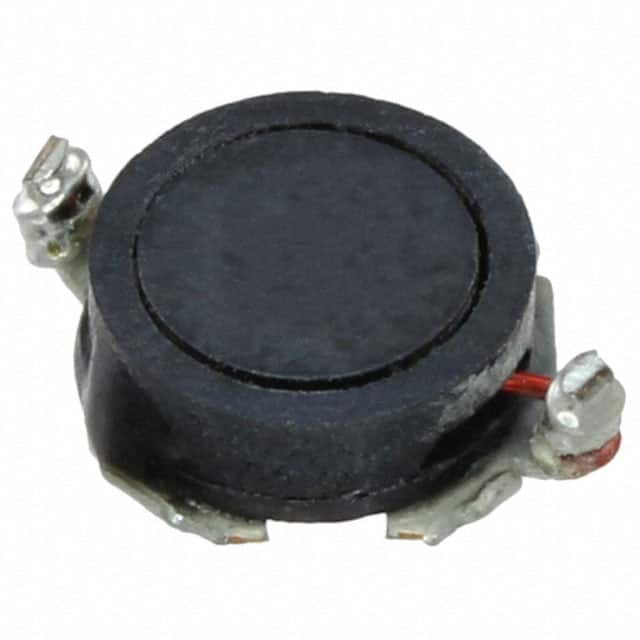

Same model may have multiple batches, images only for reference.
PG0085.332NLT

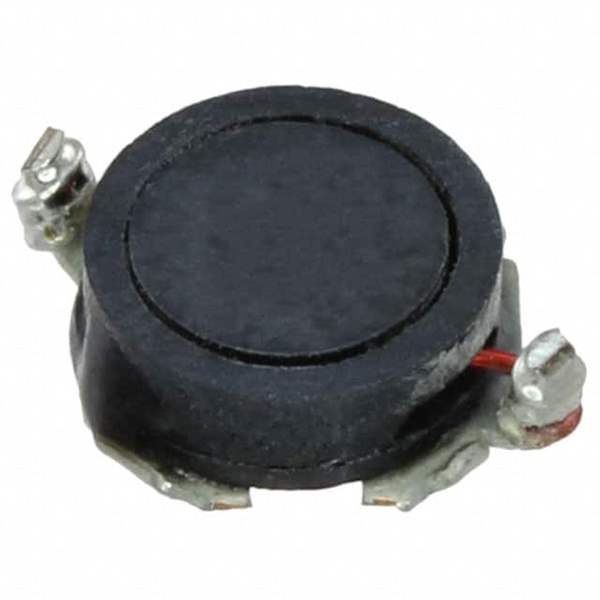

Same model may have multiple batches, images only for reference.

PG0085.332NLT

Part No PG0085.332NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1A 77 MOHM SMD / 3.3 μH Shielded Wirewound Inductor 1 A 77mOhm Max Nonstandard
Datasheet
PG0085.332NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PG0085NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 77mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.169" L x 0.169" W (4.30mm x 4.30mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 2,850 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 930309-PG0085.332NLT
Ultra Librarian 3D Model Ultra Librarian PG0085.332NLT CAD Model

Description

The 930309-PG0085.332NLT is a fixed inductor from Pulse.

  • Series: PG0085NL
  • Inductance: 3.3 µH
  • Type: Wirewound
  • Shielded: Yes
  • Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height: 0.071" (1.80mm)
  • Temperature Range: -40°C to 130°C
  • Package: Tape & reel
  • Standard Package: 2,850 pieces
