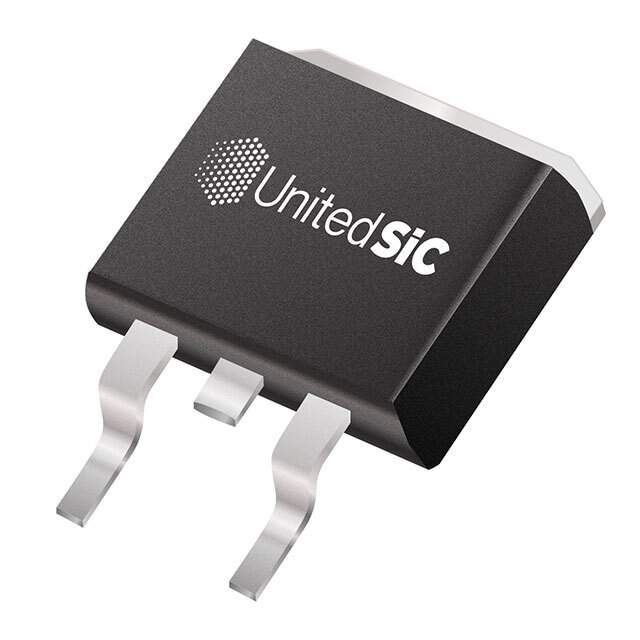

The UF3C065030B3 is a N-Channel MOSFET transistor designed for use in Discrete Semiconductor Products such as single FETs and MOSFETs.

• FET Type: N-Channel
• FET Feature: Standard
• Drain to Source Voltage (Vdss): 650 V
• Current - Continuous Drain (Id) @ 25°C: 65A (Tc)
• Rds On (Max) @ Id, Vgs: 35mOhm @ 40A, 12V
• Vgs(th) (Max) @ Id: 6V @ 10mA
• Gate Charge (Qg) (Max) @ Vgs: 51 nC @ 15 V
• Input Capacitance (Ciss) (Max) @ Vds: 1500 pF @ 100 V
• Power Dissipation (Max): 242W (Tc)
• Operating Temperature: -55°C ~ 175°C (TJ)
• Mounting Type: Surface Mount
• Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Supplier Device Package: TO-263 (D2Pak)
• Vgs (Max): ±25V
• MSL: 1 (Unlimited)
• REACH: REACH Unaffected
• HTSUS: 8541.29.0095
