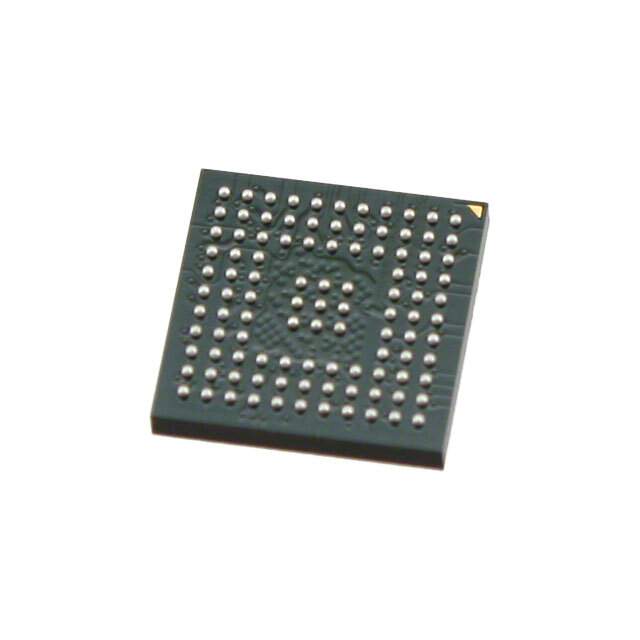

BC57G687C-ANN-E4 Real Image
Same model may have multiple batches, images only for reference.

BC57G687C-ANN-E4

Part No BC57G687C-ANN-E4
Manufacturer Qualcomm
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUTOOTH 105LFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer QUALCOMM
Packaging Reel
Part Status Obsolete (End Of Life)
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v2.1 +EDR, Class 2 and 3
Frequency 2.4GHz
Power - Output 7dbm
Sensitivity -90dBm
Memory Size 48kB RAM
Supply Voltage (V) 2.7V ~ 4.4V
Manufacturer Package 105-LFBGA
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811770-BC57G687C-ANN-E4
Ultra Librarian 3D Model Ultra Librarian BC57G687C-ANN-E4 CAD Model

Description

The QUALCOMM 811770-BC57G687C-ANN-E4 is a TxRx + MCU module.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v2.1 +EDR, Class 2 and 3
  • RAM Memory Size: 48kB
  • Manufacturer Package: 105-LFBGA
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
