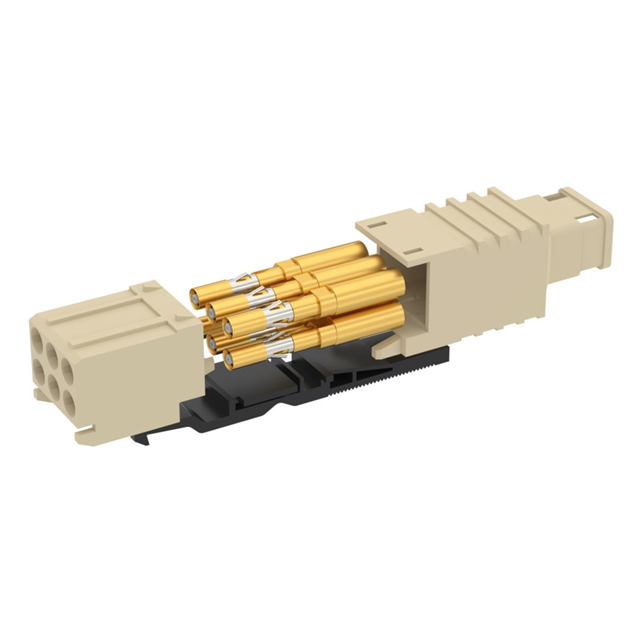

R694252537 Real Image
Same model may have multiple batches, images only for reference.

R694252537

Part No R694252537
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description COAXIPACK 2 / STRAIGHT FEMALE MO / MCC2 Connector Jack, Female Socket 50Ohm Free Hanging (In-Line) Crimp
Datasheet
R694252537 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Radiall USA, Inc.
Package Bulk
Connector Style MCC2
Connector Type Jack, Female Socket
Contact Termination Crimp
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-188, 316
Fastening Type Push-Pull
Frequency - Max 6 GHz
Number of Ports 6
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyetheretherketone (PEEK) ; Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -25°C ~ 125°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number R69425
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1351583-R694252537
Ultra Librarian 3D Model Ultra Librarian R694252537 CAD Model

Description

The R694252537 is a coaxial connector (RF) assembly from Radiall USA, Inc.

  • Connector Type: Jack, Female Socket
  • Fastening Type: Push-Pull
  • Contact Termination: Crimp
  • Connector Style: MCC2
  • Housing Color: Gold
  • Voltage Rating: 500V
  • Number of Ports: 6
  • Impedance: 50Ohm
  • Insertion Loss: 0.2dB
  • Mating Cycle: 500
  • Temperature Range: -25°C to 125°C
  • ECCN: EAR99
