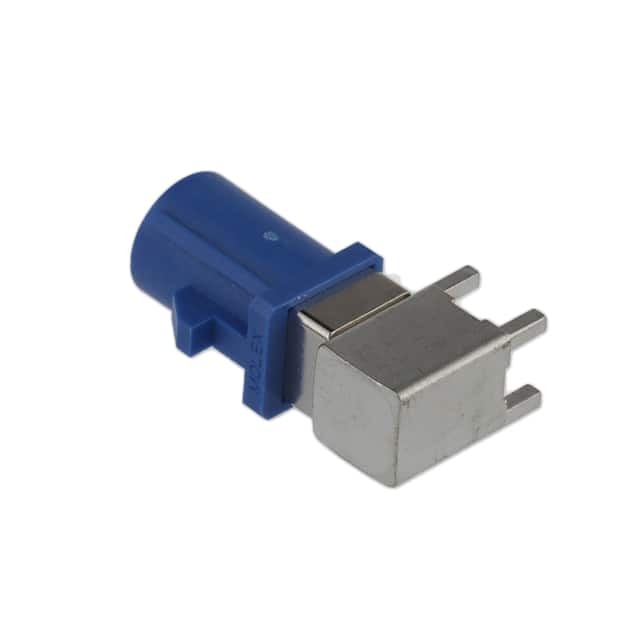

0734035112
Same model may have multiple batches, images only for reference.

0734035112

Part No 0734035112
Manufacturer Molex, LLC
Catalog Coaxial Connectors (RF) - Assemblies
Description SMB JACK FAKRA R/A PCB 50 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Molex, LLC
Series 73403
Package Tray
Product Status Active
Connector Style SMB, Fakra
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Locking Ramp
Frequency - Max 6 GHz
Number of Ports 1
Features Code C
Housing Color Blue
Center Contact Material Brass, Phosphor Bronze
Body Material Brass
Body Finish Tin, Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 335 V
Mating Cycles 50
Base Product Number 073403
Standard Package 54 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 857135-0734035112
Ultra Librarian 3D Model Ultra Librarian 0734035112 CAD Model

Description

The 857135-0734035112 is a coaxial connector assembly from Molex, LLC.

  • Series: 73403
  • Configuration: Jack and male pin
  • Fastening Type: Locking ramp
  • Voltage Rating: 335V
  • Frequency: Up to 6 GHz
  • Housing Color: Blue
  • Ports: Single
  • Connector Material: Brass
  • Connector Finish: Tin and nickel
  • Center Contact Material: Brass and phosphor bronze
  • Center Contact Plating: Gold
  • Dielectric Material: PTFE
  • Temperature Range: -40°C to 105°C
  • Mounting: Through-hole or right angle
