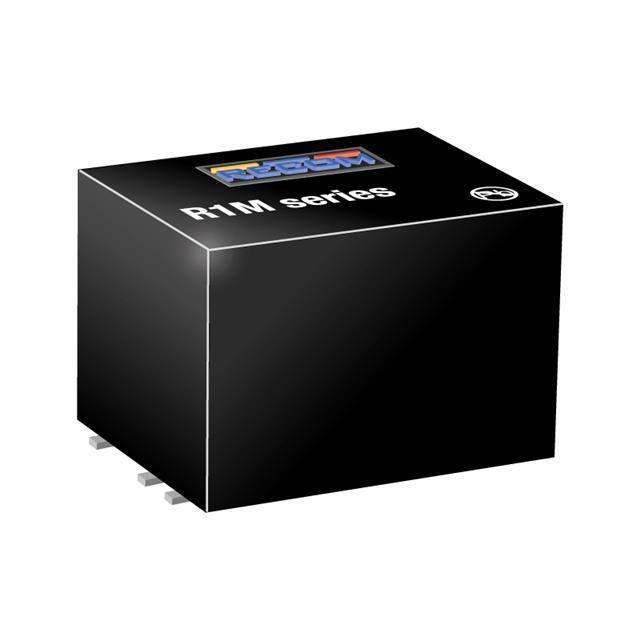

Same model may have multiple batches, images only for reference.

R1M-123.3S/SMD

Name: R1M-123.3S/SMD
Brand: Recom Power
SKU: 1352263
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	R1M-123.3S/SMD
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	1W DC/DC-CONVERTER 'ECONOLINE' S / Isolated Module DC DC Converter 1 Output 3.3V 300mA 4.5V - 18V Input
Datasheet	R1M-123.3S/SMD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	R1M (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output 1	3.3V
Current - Output (Max)	300mA
Power (Watts)	990 mW
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	77%
Mounting Type	Surface Mount
Package / Case	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Standard Package	20
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1352263-R1M-123.3S/SMD
Ultra Librarian 3D Model	Ultra Librarian R1M-123.3S/SMD CAD Model

Alternative Products

Description

The R1M (1W) series from Recom Power is an isolated module type DC-DC converter.

Package / Case: 7-SMD Module, 6 Leads
Size / Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Efficiency: 77%
Voltage - Isolation: 1.6 kV
Output Current: 300mA
Input Voltage Range: 4.5V ~ 18V
Output Voltage: 3.3V
Power (Watts): 990mW
Applications: ITE (Commercial)
Standard Package: 20
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 105°C (With Derating)
