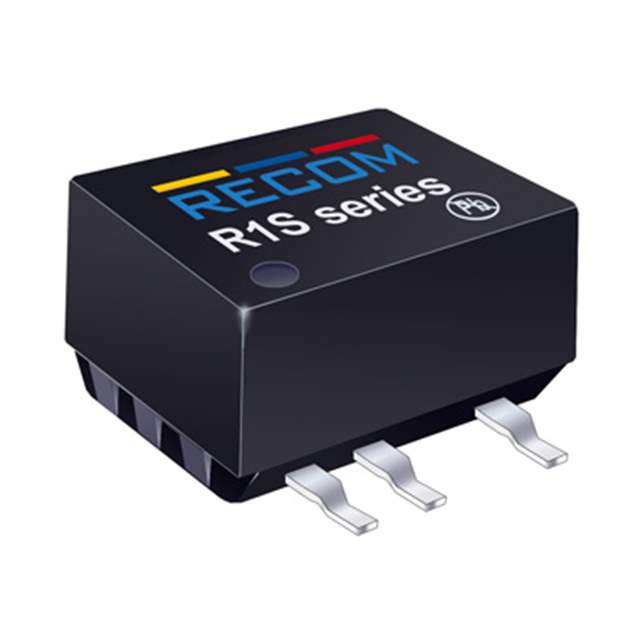

Same model may have multiple batches, images only for reference.

R1S-1205/H-R

Name: R1S-1205/H-R
Brand: Recom Power
SKU: 792860
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	R1S-1205/H-R
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 1W 12VIN 05VOUT
Datasheet	R1S-1205/H-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Recom Power
Series	ECONOLINE R1S
Packaging	Reel package
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	10.8V
Voltage Input MAX	13.2V
Voltage - Output 1	5V
Current - Output (Maximum)	200mA
Power (Watts)	1W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial), Medical
Features	SCP
Operating Temperature Range	-40°C ~ 100°C
Efficiency	78%
Mounting	SMD
Package	8-SMD Module, 5 Leads
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Win Source Part Number	792860-R1S-1205/H-R
Family Name	R1S-1205
Introduction Date	February 22, 2010
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian R1S-1205/H-R CAD Model

Alternative Products

Description

The ECONOLINE R1S-1205 is an isolated module power supply.

Applications: ITE (Commercial) and medical
Power Output: 1W
Voltage Isolation: 3kV (3000V)
Outputs: 1
Voltage Output: 5V
Efficiency: 78%
Package: 8-SMD module, 5 leads
Mounting: SMD
Input Voltage Range: 10.8V to 13.2V
Current Output: 200mA
Features: SCP
Operating Temperature Range: -40°C to 100°C
