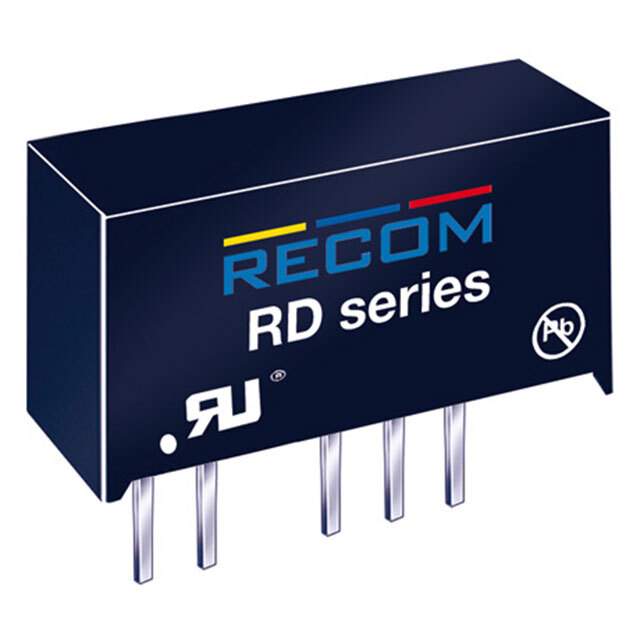

RD-1205D Real Image
Same model may have multiple batches, images only for reference.

RD-1205D

Part No RD-1205D
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 10.8V - 13.2V Input
Datasheet
RD-1205D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE RD (2W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Base Product Number RD-1205
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 945-1820-5,10000223,RD1205D,RD-1205D-ND
Standard Package 25
Win Source Part Number 1159306-RD-1205D
Ultra Librarian 3D Model Ultra Librarian RD-1205D CAD Model

Description

The ECONOLINE RD (2W) is an isolated module power supply designed for ITE (Commercial) applications.

  • Voltage Isolation: 1 kV
  • Outputs: Two
  • Maximum Output Current: 200mA each
  • Voltage Input Range: 10.8V to 13.2V
  • Output Voltage: 5V and -5V
  • Efficiency: 82%
  • Mounting Type: Through hole
  • Package: 7-SIP module, 5 leads package
  • Operating Temperature Range: -40°C to 85°C
  • Standard Package: 25 units
  • Cross-reference: Part number 10000223
