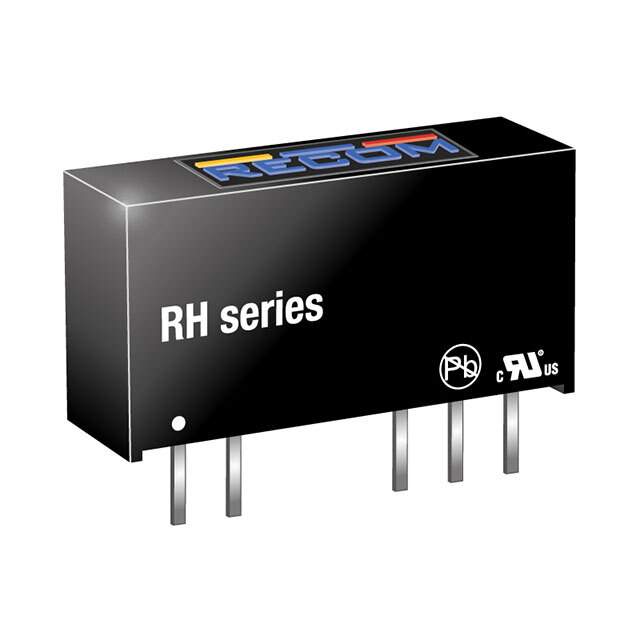

Same model may have multiple batches, images only for reference.

RH-2412D

Name: RH-2412D
Brand: Recom Power
SKU: 294482
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RH-2412D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 1W DL +/-12VOUT SIP7
Datasheet	RH-2412D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Recom Power
Series	ECONOLINE RH
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts) - Manufacture Series	1W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial), Medical
Features	SCP
Mounting Style	Through Hole
Package	7-SIP Module (5 Leads)
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Operating Temperature Range	-40°C ~ 90°C
Efficiency	84%
Power (Watts) - Max	1W
Win Source Part Number	143650-RH-2412D
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian RH-2412D CAD Model

Alternative Products

Description

The RH-2412D is a DC-DC converter manufactured by Recom Power.

It is an isolated module available in a 7-SIP module (5 leads) package.
The device has a voltage isolation of 3kV (3000V) and can handle a maximum output current of 42mA.
The product has two outputs, with voltage output 1 being 12V and voltage output 2 being -12V.
The device has an efficiency of 84 percent and a power (watts) - max of 1W.
The supply and demand status of the product is limited.
