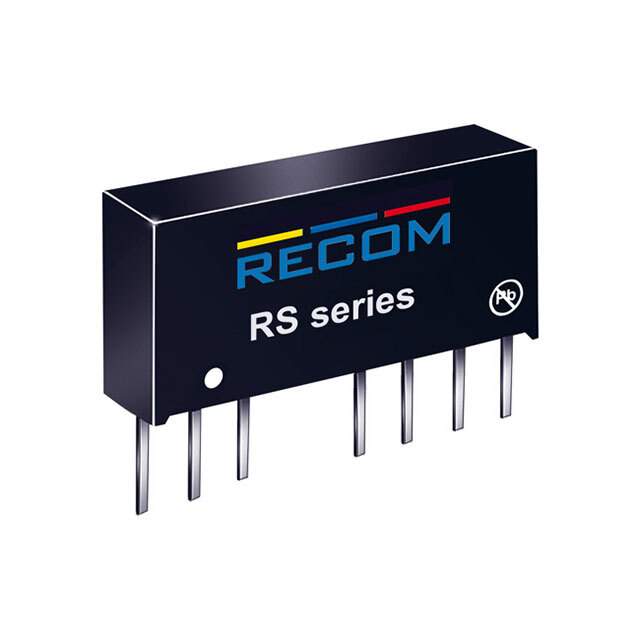

RS-0505D Real Image
Same model may have multiple batches, images only for reference.

RS-0505D

Part No RS-0505D
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 9V Input
Datasheet
RS-0505D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Recom Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -45°C ~ 85°C
Efficiency 75%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features Enable, Active Low
Base Product Number RS-0505
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 10002817,945-1308,RS0505D
Standard Package 22
Win Source Part Number 1335313-RS-0505D
Ultra Librarian 3D Model Ultra Librarian RS-0505D CAD Model

Description

The RS-0505D is an isolated module type DC-DC converter with remote on/off and SCP features.

  • Applications: ITE (Commercial)
  • Standard Package: 22
  • Power: 2W
  • Outputs: Two outputs
  • Maximum Output Current: 200mA for both outputs
  • Input Voltage Range: between 4.5V to 9V
  • Output Voltage (1): 5V
  • Output Voltage (2): -5V
  • Efficiency: 75%
  • Mounting: Through a hole
  • Package/Case: 8-SIP Module, 7 Leads
  • Temperature Range: -45°C to 85°C
  • Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
  • Other Part Numbers: 10002817, 945-1308, and RS0505D
