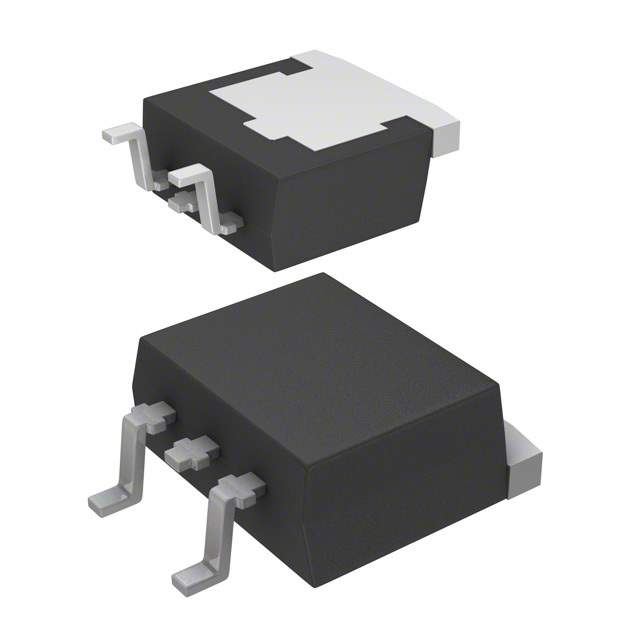

BCR12CS-12LB#B00 Real Image
Same model may have multiple batches, images only for reference.

BCR12CS-12LB#B00

Part No BCR12CS-12LB#B00
Manufacturer Renesas Electronics America
Catalog Triacs
Description TRIAC 600V 12A / TRIAC Standard 600 V 12 A Surface Mount LDPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - TRIACs
Mfr Renesas Electronics America Inc
Package Tube
Triac Type Standard
Voltage - Off State 600 V
Current - On State (It (RMS)) (Max) 12 A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 120A @ 60Hz
Current - Gate Trigger (Igt) (Max) 30 mA
Configuration Single
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SC-83
Supplier Device Package LDPAK
Base Product Number BCR12
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.30.0080
Standard Package 1
Win Source Part Number 1048871-BCR12CS-12LB#B00
Ultra Librarian 3D Model Ultra Librarian BCR12CS-12LB#B00 CAD Model

Description

The Renesas Electronics America 1048871-BCR12CS-12LB#B00 is a thyristor used for TRIACs.

  • Voltage Off State: 600V
  • Voltage Gate Trigger: 1.5V (Max)
  • Current Gate Trigger: 30mA (Max)
  • Package: Tube
  • Standard Package: 1
  • Mounting Type: SMD (SMT)
  • Configuration: Single Unit
  • MSL Level: 1 (Unlimited)
  • REACH Affected: Yes
