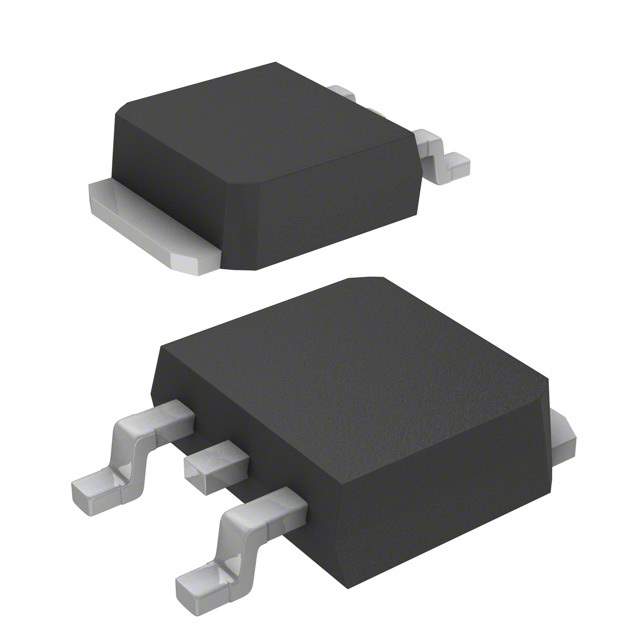

BCR5AS-14A-T13#B00 Real Image
Same model may have multiple batches, images only for reference.

BCR5AS-14A-T13#B00

Part No BCR5AS-14A-T13#B00
Manufacturer Renesas Electronics America
Catalog Triacs
Description TRIAC 700V 5A / TRIAC 700V 5A(RMS) 50A 3-Pin(2+Tab) MP-3A T/R
Datasheet
BCR5AS-14A-T13#B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Reel package
Triac Type Standard
Voltage - Off State 700V
Current - On State (It (RMS)) (Maximum) 5A
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) 50A @ 60Hz
Current - Gate Trigger (Igt) (Maximum) 30mA
Configuration Single
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting SMD
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Manufacturer Package MP-3A
Win Source Part Number 769807-BCR5AS-14A-T13#B00
Popularity Medium
Supply and Demand Status Limited
Family Name BCR5AS-14A
Introduction Date July 26, 2012
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BCR5AS-14A-T13#B00 CAD Model

Description

The Renesas Electronics America BCR5AS-14A-T13#B00, manufactured by Renesas Electronics America, is a discrete semiconductor product.

  • Family: BCR5AS-14A
  • Type: Standard Triac
  • Voltage Off State: 700V
  • Current Non-Rep. Surge: 50A @ 60Hz
  • Supply and Demand Status: Limited
  • Package: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Current On State (It (RMS)) (maximum): 5A
  • Voltage Gate Trigger (Vgt) (maximum): 1.5V
  • Current Gate Trigger (Igt) (maximum): 30mA
  • Introduction Date: July 26, 2012
  • Estimated EOL Date: 2024
  • ECCN: EAR99
