Same model may have multiple batches, images only for reference.

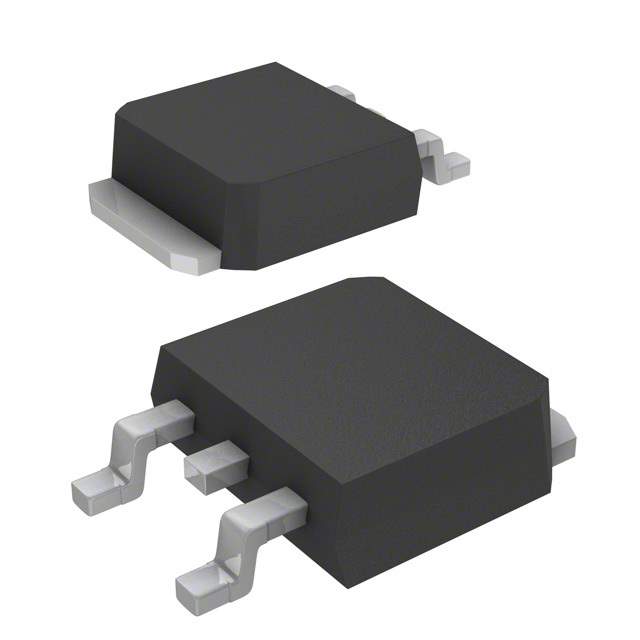

CR5AS-12A#B01 Real Image
Same model may have multiple batches, images only for reference.

CR5AS-12A#B01

Part No CR5AS-12A#B01
Manufacturer Renesas Electronics America
Catalog SCRs - Single
Description TRIAC 600V 5A / SCR 600V 7.8A(RMS) 90A 3-Pin(2+Tab) MP-3A Tube
Datasheet
CR5AS-12A#B01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Tube
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 800mV
Current - Gate Trigger (Igt) (Maximum) 100μA
Voltage - On State (Vtm) (Maximum) 1.8V
Current - On State (It (AV)) (Maximum) 5A
Current - On State (It (RMS)) (Maximum) 7.8A
Current - Hold (Ih) (Maximum) 3.5mA
Current - Off State (Maximum) 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 90A @ 60Hz
SCR Type Sensitive Gate
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Manufacturer Package MP-3A
Win Source Part Number 771758-CR5AS-12A#B01
Popularity Medium
Supply and Demand Status Balance
Family Name CR5AS-12A#B01
Introduction Date April 10, 2011
ECCN EAR99
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian CR5AS-12A#B01 CAD Model

Description

The Renesas Electronics America electronic component with the Win Source Part Number 771758-CR5AS-12A#B01 is a part of the discrete semiconductor products category. It comes in a TO-252-3, DPak (2 Leads + Tab), SC-63 package and can operate in a temperature range of -40°C to 125°C.

  • Voltage-Off State: 600V
  • Current Non-Rep. Surge 50, 60Hz (Itsm): 90A @ 60Hz
  • SCR Type: Sensitive Gate
  • Family Name: CR5AS-12A#B01
  • Supply and Demand Status: Balance
  • Manufacturer: Renesas Electronics America
