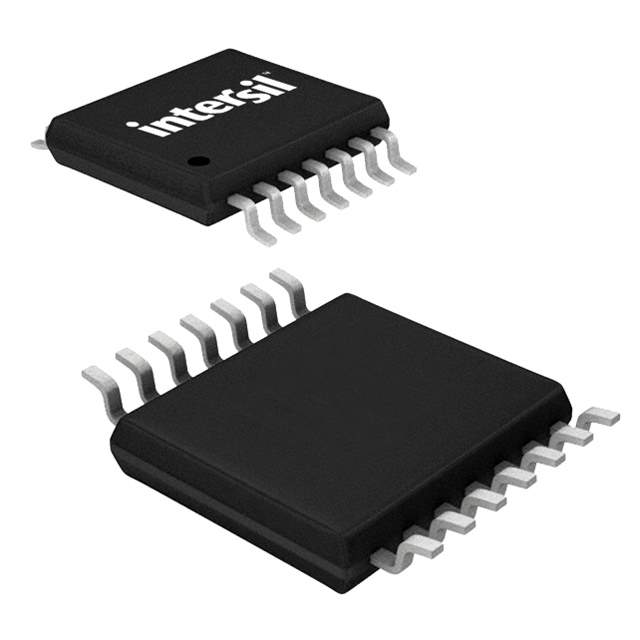

EL5420CRZ-T7A Real Image
Same model may have multiple batches, images only for reference.

EL5420CRZ-T7A

Part No EL5420CRZ-T7A
Manufacturer Renesas Electronics America
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP VFB 4 CIRCUIT 14TSSOP  /  Voltage Feedback Amplifier 4 Circuit Rail-to-Rail 14-TSSOP
Datasheet
EL5420CRZ-T7A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Renesas Electronics America Inc
Series EL5420
Package Tape & Reel (TR)
Amplifier Type Voltage Feedback
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 10V/µs
Gain Bandwidth Product 8 MHz
-3db Bandwidth 12 MHz
Current - Input Bias 2 nA
Voltage - Input Offset 2 mV
Current - Supply 500µA (x4 Channels)
Current - Output / Channel 30 mA
Voltage - Supply Span (Min) 4.5 V
Voltage - Supply Span (Max) 16.5 V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 14-TSSOP
Base Product Number EL5420
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Standard Package 250
Win Source Part Number 1039202-EL5420CRZ-T7A
Ultra Librarian 3D Model Ultra Librarian EL5420CRZ-T7A CAD Model

Description

The EL5420CRZ-T7A is a 4-channel voltage feedback amplifier from Renesas Electronics America Inc.

  • Product Name: EL5420CRZ-T7A
  • Manufacturer: Renesas Electronics America Inc.
  • Channel Count: 4
  • Type: Voltage Feedback
  • Output Type: Rail-to-Rail
  • -3db Bandwidth: 12 MHz
  • Gain Bandwidth Product: 8 MHz
  • Slew Rate: 10V/μs
  • Current Input Bias: 2 nA
  • Voltage Input Offset: 2 mV
  • Current Supply: 500μA (x4 channels)
  • Current Output per Channel: 30 mA
  • Package/Case: 14-TSSOP (0.173", 4.40mm Width)
  • Device Supplier Package: 14-TSSOP
  • Operating Temperature Range: -40°C to 125°C
  • Applications: Linear amplifiers, instrumentation, OP amps, buffer amps, and voltage feedback
