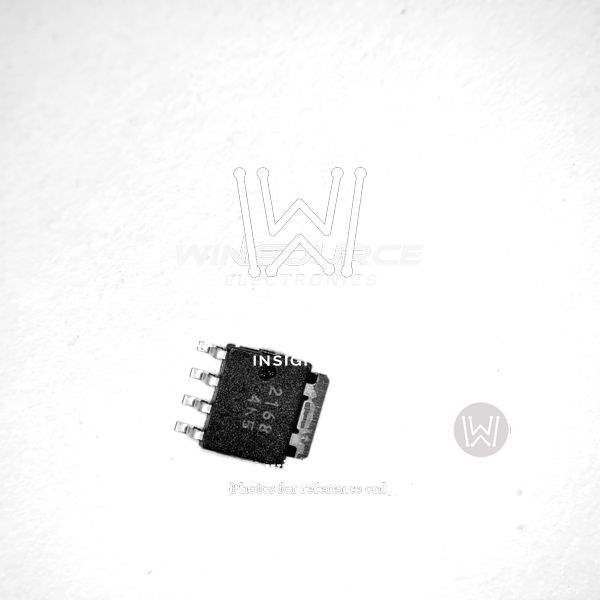

The HAT2168H-EL is a Power MOSFET from Renesas Electronics America, designed for high-efficiency switching applications. This N-channel MOSFET boasts a low on-resistance, contributing to reduced power loss and improved thermal performance in power conversion circuits.

Applications

• DC-DC Converters
• Load Switching
• Power Management Systems
• Synchronous Rectification
• Motor Control Circuits

Features

• N-Channel MOSFET
• Low On-Resistance (Rds(on))
• Fast Switching Speed
• Avalanche Rated
• Surface Mount Package
• Operating Voltage: 30V
• Continuous Drain Current: 15A

Benefits

• High Efficiency Power Conversion
• Reduced Power Losses
• Improved Thermal Performance
• Simplified Circuit Design
• Compact Footprint
• Reliable and Stable Operation

Additional Details

The HAT2168H-EL is specifically designed for low-voltage, high-current applications where power efficiency is paramount. Refer to the official Renesas datasheet for detailed electrical characteristics, thermal specifications, and recommended application circuits. Proper gate drive and thermal management techniques are essential for optimal performance and reliability.
