HI1-0509-2 Renesas Electronics America
Same model may have multiple batches, images only for reference.

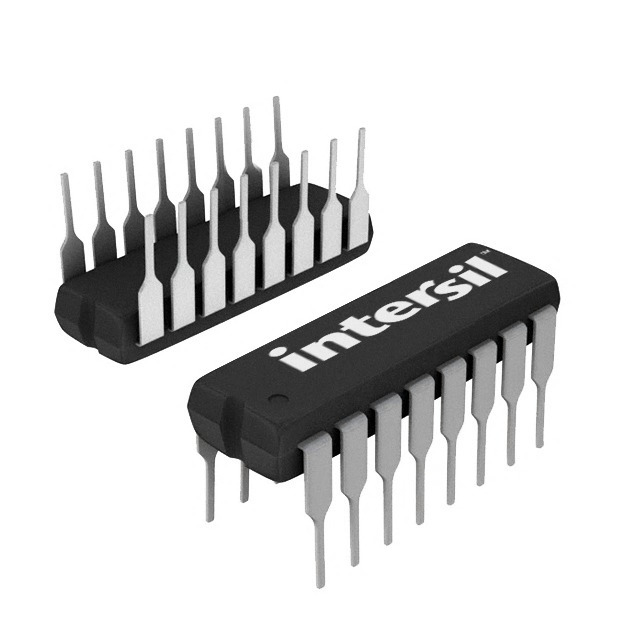

HI1-0509-2

Part No HI1-0509-2
Manufacturer Renesas Electronics America
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers | IC MULTIPLEXER DUAL 4X1 16CDIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America Inc.
Packaging Tube
Switch Circuit SP4T
On-State Resistance (Maximum) 300Ohm
Channel-to-Channel Matching (ΔRon) 15Ohm
Supply Voltage , Dual (V±) ±15V
Switch Time (Ton, Toff) (Maximum) 500ns, 500ns
Channel Capacitance (CS(off), CD(off)) 10pF, 30pF
Current - Leakage (IS(off)) (Maximum) 30pA
Temperature Range - Operating 0°C ~ 75°C
Manufacturer Package 16-CDIP
Supplier Device Package 16-CERDIP
Family Part Number HI-509
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 1180410-HI1-0509-2
Manufacturer Homepage www.intersil.com/cda/home
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HI1-0509-2 CAD Model

Description

The Renesas Electronics America Inc HI1-0509-2 is an SP4T switch circuit IC manufactured by Renesas Electronics America Inc.

  • Channel-to-Channel Matching (ΔRon): 15 ohms
  • Channel Capacitance (CS(off), CD(off)): 10pF, 30pF
  • Family: HI-509
  • Package: 16-CERDIP
  • Temperature Range: 0°C to 75°C
  • On-State Resistance (Maximum): 300 ohms
  • Switch Time (Ton, Toff) (Maximum): 500ns, 500ns
  • Current Leakage (IS(off)) (Maximum): 30pA
  • Supply and Demand Status: Limited
