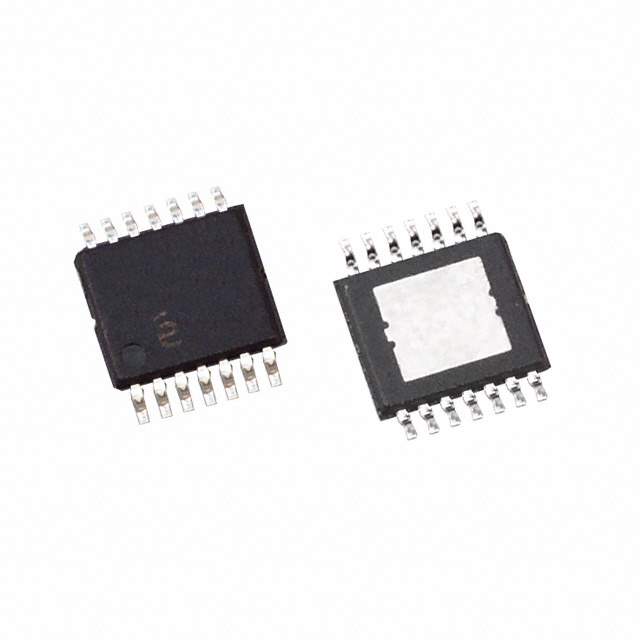

ISL78301FVECZ Real Image
Same model may have multiple batches, images only for reference.

ISL78301FVECZ

Part No ISL78301FVECZ
Manufacturer Renesas Electronics America
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN POS ADJ 14HTSSOP  /  Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA 14-HTSSOP
Datasheet
ISL78301FVECZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Renesas Electronics America Inc
Series Automotive, AEC-Q100
Package Tube
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) 12V
Current - Output 150mA
Current - Quiescent (Iq) 24 µA
Current - Supply (Max) 125 µA
PSRR 66dB (100Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 14-HTSSOP
Base Product Number ISL78301
Other Names -ISL78301FVECZ
Standard Package 960
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1244855-ISL78301FVECZ
Ultra Librarian 3D Model Ultra Librarian ISL78301FVECZ CAD Model

Description

The ISL78301FVECZ is a linear voltage regulator that is ideal for use in automotive applications.

  • Output: Single output
  • Maximum Current: 150mA
  • Output Voltage: Adjustable between 2.5V and 12V
  • Input Voltage Range: Between 40V and 12V
  • Control Feature: Enable control feature
  • Operating Temperature Range: -40°C to 125°C
  • Package: 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
  • Protection Features: Over current and over temperature protection
  • Package: Tube
  • Standard Package: 960
