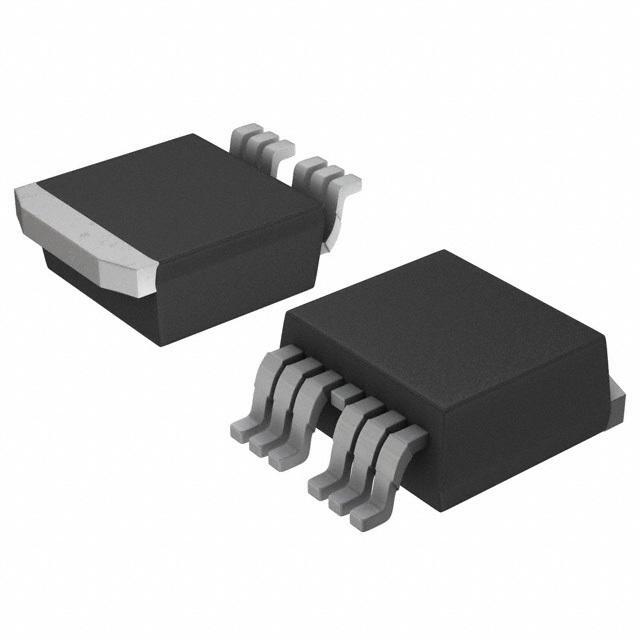

NP180N055TUK-E1-AY

Name: NP180N055TUK-E1-AY
Brand: Renesas Electronics America
SKU: 790770
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	NP180N055TUK-E1-AY
Manufacturer	Renesas Electronics America
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 55V 180A TO-263 / Trans MOSFET N-CH 55V 180A Automotive 8-Pin(7+Tab) D2PAK T/R
Datasheet	NP180N055TUK-E1-AY Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Renesas Electronics America
Packaging	Reel package
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	55V
Current - Continuous Drain (Id) @ 25°C	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs(th) (Maximum) @ Id	4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs	294nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	16050pF @ 25V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	1.8W (Ta), 348W (Tc)
Rds On (Maximum) @ Id, Vgs	1.4 mOhm @ 90A, 10V
Operating Temperature Range	175°C (TJ)
Mounting	SMD
Manufacturer Package	TO-263-7
Package	TO-263-7, D2Pak (6 Leads + Tab)
Win Source Part Number	790770-NP180N055TUK-E1-AY
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	NP180N055TUK
Introduction Date	December 05, 2011
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian NP180N055TUK-E1-AY CAD Model

Alternative Products

Description

The Renesas Electronics America NP180N055TUK-E1-AY is a MOSFET transistor from Renesas Electronics America.

Drain Current: 180A (Tc)
Drain-Source Voltage: 55V
Package: TO-263-7, D2Pak (6 Leads + Tab)
Channel Type: N
Gate Charge (Qg): 294nC @ 10V
Input Capacitance (Ciss): 16050pF @ 25V
Rds On (Maximum) @ Id, Vgs: 1.4 mOhm @ 90A, 10V
Supply Voltage Range: 1.6 V to 5.5 V
Maximum Power Dissipation: 1.8W (Ta), 348W (Tc)
Estimated EOL Date: 2029
Supply and Demand Status: Limited
