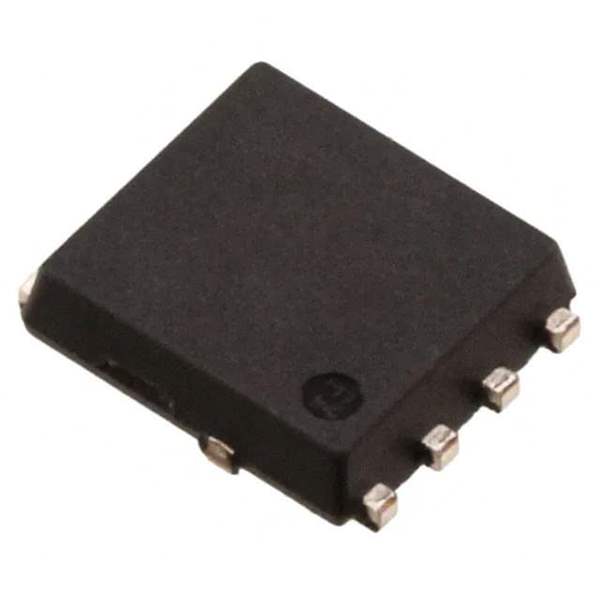

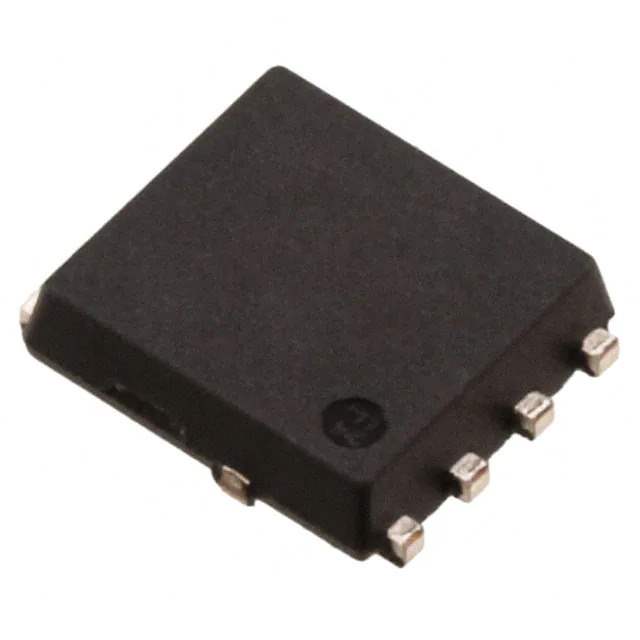

NP20P06YLG-E1-AY

Part No NP20P06YLG-E1-AY
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 60V 20A 8HSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Renesas Electronics America
Package Tape & Reel
Product Status Active
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 47mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 51 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2407 pF @ 25 V
Power Dissipation (Max) 1W (Ta), 57W (Tc)
Temperature Range - Operating 175°C
Mounting Type Surface Mount
Supplier Device Package 8-HSON (5x5.4)
Package / Case 8-PowerLDFN
Base Product Number NP20P06
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 832707-NP20P06YLG-E1-AY
Ultra Librarian 3D Model Ultra Librarian NP20P06YLG-E1-AY CAD Model

Description

The NP20P06YLG-E1-AY, a P-channel MOSFET transistor from Renesas Electronics America, falls under discrete semiconductor products.

  • Product Category: Discrete Semiconductor
  • Application: Surface Mount
  • Package Type: Tape & Reel
  • Package Quantity: 2,500 pieces
  • Drain-to-Source Voltage (Vdss): 60V
  • Continuous Drain Current (Id): 20A @ 25°C
  • Maximum On-Resistance (Rds On): 47mOhm
  • Gate-Source Voltage (Vgs) Threshold: 2.5V
  • Maximum Power Dissipation: 1W (Ta), 57W (Tc)
  • ECCN Classification: EAR99
  • HTSUS Code: 8541.29.0095
  • Base Product Number: NP20P06
