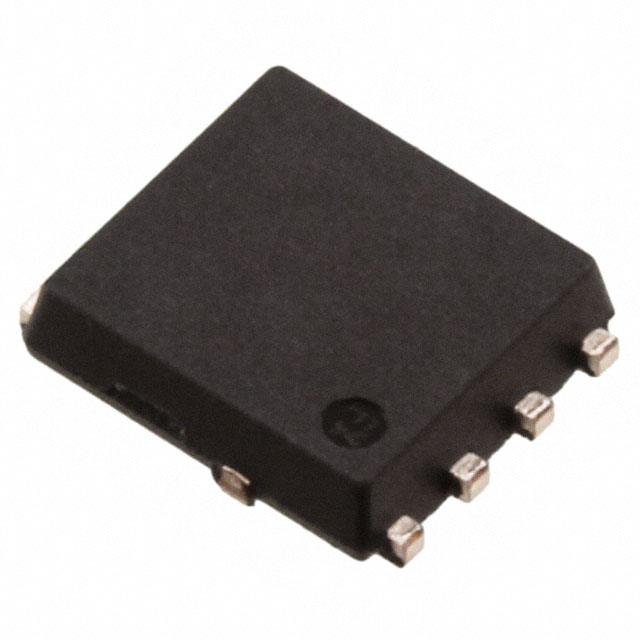

Same model may have multiple batches, images only for reference.
NP74N04YUG-E1-AY Renesas Electronics America
Same model may have multiple batches, images only for reference.

NP74N04YUG-E1-AY

Part No NP74N04YUG-E1-AY
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 75A 8HSON
Datasheet
NP74N04YUG-E1-AY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 96nC @ 10V
Max Input Capacitance 5430pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1W (Ta), 120W (Tc)
Maximum Rds On at Id,Vgs 5.5 mOhm @ 37.5A, 10V
Temperature Range - Operating 175°C (TJ)
Mounting SMD (SMT)
Case / Package 8-HSON
Dimension 8-SMD, Flat Lead Exposed Pad
Win Source Part Number 1083345-NP74N04YUG-E1-AY
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Motor Drive & Control, Industrial
Ultra Librarian 3D Model Ultra Librarian NP74N04YUG-E1-AY CAD Model

Description

The Renesas Electronics America 1083345-NP74N04YUG-E1-AY is a highly popular electronic component that is widely used in power management, motor drive and control, and industrial applications.

  • Component Type: MOSFET
  • Polarity: N-Channel
  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current: 75A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Rds On: 5.5 mOhm @ 37.5A, 10V
  • Maximum Gate Charge: 96nC @ 10V
  • Maximum Input Capacitance: 5430pF @ 25V
