Same model may have multiple batches, images only for reference.

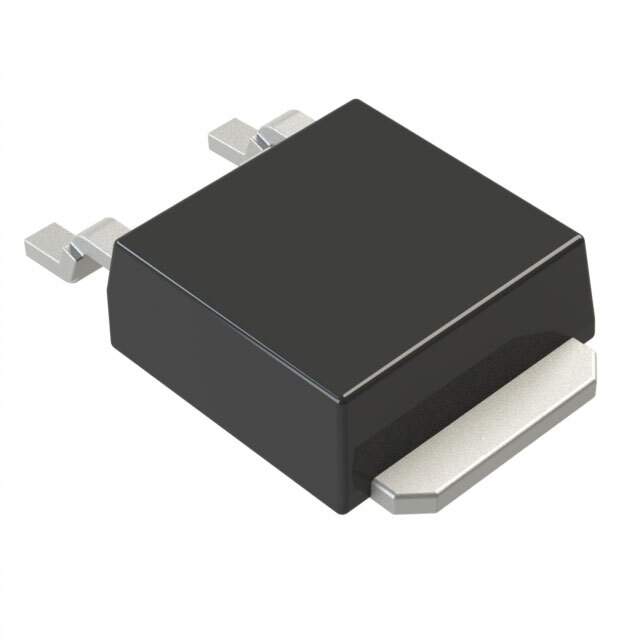

NP90N04VDK-E1-AY Real Image
Same model may have multiple batches, images only for reference.

NP90N04VDK-E1-AY

Part No NP90N04VDK-E1-AY
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description POWER DEVICE AUTOMOTIVE MOS MP-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 11 Weeks
Features N-Channel 40 V 90A (Tc) 1.2W (Ta), 147W (Tc) Surface Mount TO-252 (MP-3ZP)
Manufacturer Renesas Electronics America
Series Automotive, AEC-Q101
Package Reel - TR
Operating Temperature Range 175°C
Mounting Surface Mount
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Case / Package TO-252 (MP-3ZP)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 559-NP90N04VDK-E1-AYTR, 559-NP90N04VDK-E1-AYDKR, 559-NP90N04VDK-E1-AYCT
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929312-NP90N04VDK-E1-AY
Ultra Librarian 3D Model Ultra Librarian NP90N04VDK-E1-AY CAD Model

Description

The Renesas Electronics America NP90N04VDK-E1-AY is an N-channel MOSFET transistor with a maximum voltage rating of 40V and a current rating of 90A.

  • Channel Type: N-channel
  • Transistor Type: MOSFET
  • Voltage Rating: 40V
  • Current Rating: 90A
  • Application: Automotive Applications
  • Standard Compliance: AEC-Q101
  • Package: TO-252-3, DPak
  • Mounting: Surface Mount
  • On-Resistance: 1.2W (Ta), 147W (Tc)
  • Package Type: Reel - TR
  • Quantity per Package: 2500
  • Popularity: High
  • Supply and Demand: Balance
