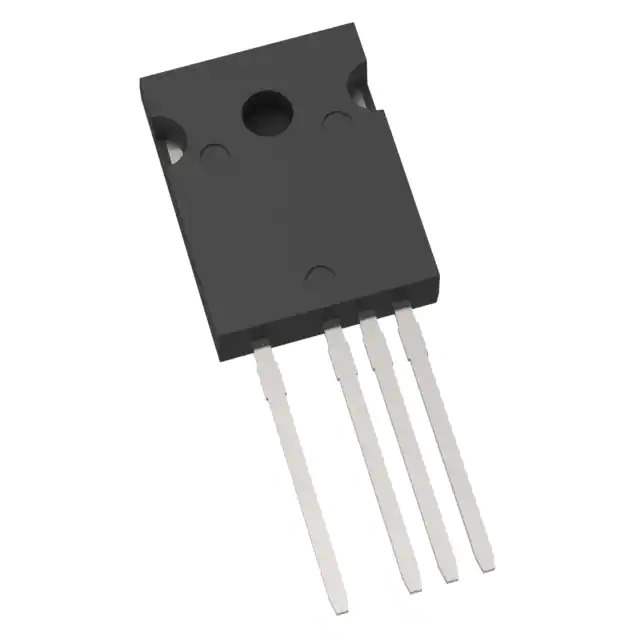

TK62Z60X,S1F Real Image
Same model may have multiple batches, images only for reference.

TK62Z60X,S1F

Part No TK62Z60X,S1F
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description X35 PB-F POWER MOSFET TRANSISTOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Toshiba Semiconductor and Storage
Package Tube
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 61.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 40mOhm @ 21A, 10V
Vgs(th) (Max) @ Id 3.5V @ 3.1mA
Gate Charge (Qg) (Max) @ Vgs 135 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 6500 pF @ 300 V
Power Dissipation (Max) 400W (Tc)
Temperature Range - Operating 150°C
Mounting Type Through Hole
Supplier Device Package TO-247-4L(T)
Package / Case TO-247-4
Base Product Number TK62Z60
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 899706-TK62Z60X,S1F
Ultra Librarian 3D Model Ultra Librarian TK62Z60X,S1F CAD Model

Description

The 899706-TK62Z60X,S1F is an N-Channel MOSFET transistor from Toshiba Semiconductor and Storage.

  • Application: Designed for use in Discrete Semiconductor Products - Transistors - FETs, MOSFETs
  • Vdss: 600V
  • Id: 61.8A @ 25°C
  • Rds On (Max): 40mOhm @ 21A and 10V
  • Vgs(th) (Max): 3.5V @ 3.1mA
  • Power Dissipation: 400W
  • Package: TO-247-4
  • Mounting: Through-hole mountable
  • Qg: 135nC @ 10V
  • Ciss: 6500pF @ 300V
  • Operating Temperature Range: -55°C to 150°C
  • Status: Active product in the market
