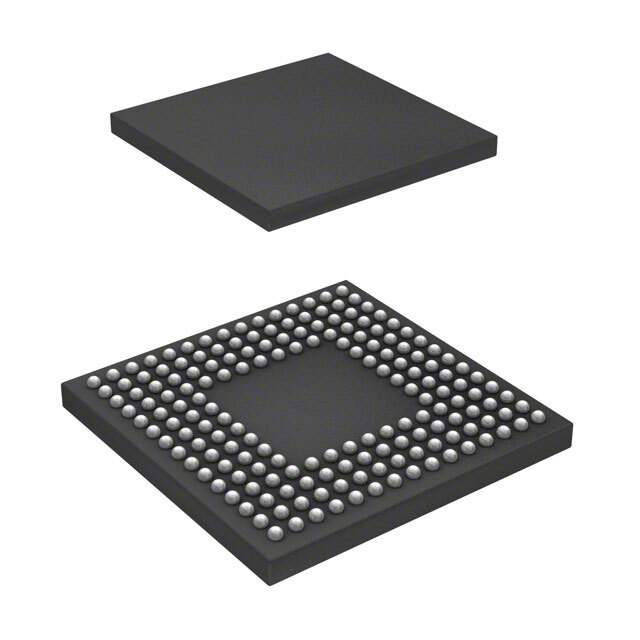

R4F2472VBR34DV Real Image1 R4F2472VBR34DV Real Image2
Same model may have multiple batches, images only for reference.
R4F2472VBR34DV Real Image1 R4F2472VBR34DV Real Image2
R4F2472VBR34DV Real Image1 R4F2472VBR34DV Real Image2
Same model may have multiple batches, images only for reference.

R4F2472VBR34DV

Part No R4F2472VBR34DV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 512KB FLSH 176LFBGA / H8S/2600 H8® H8S/2400 Microcontroller IC 16-Bit 34MHz 512KB (512K x 8) FLASH 176-LFBGA (13x13)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Mfr Renesas Electronics America
Series H8® H8S/2400
Package Tray
Product Status Not For New Designs
Core Processor H8S/2600
Core Size 16-Bit
Speed 34MHz
Connectivity Ethernet, I²C, LPC, PECI, SCI, SSU, USB
Peripherals DMA, POR, PWM, WDT
Number of I/O 110
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 40K x 8
Voltage - Supply (Vcc/Vdd) 3V ~ 3.6V
Data Converters A/D 8x10b
Oscillator Type External
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 176-LFBGA
Supplier Device Package 176-LFBGA (13x13)
Base Product Number R4F2472
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 152 pcs
Win Source Part Number 1383252-R4F2472VBR34DV
Ultra Librarian 3D Model Ultra Librarian R4F2472VBR34DV CAD Model

Description

The R4F2472VBR34DV is an embedded microcontroller that belongs to the H8S/2400 series, manufactured by Renesas Electronics America.

  • Core Processor: 16-bit
  • Speed: 34MHz
  • Connectivity: Ethernet, I²C, LPC, PECI, SCI, SSU, and USB
  • Program Memory Size: 512KB
  • RAM Size: 40K x 8
  • Package: Tray
  • Standard Package Quantity: 152 pieces
