Same model may have multiple batches, images only for reference.

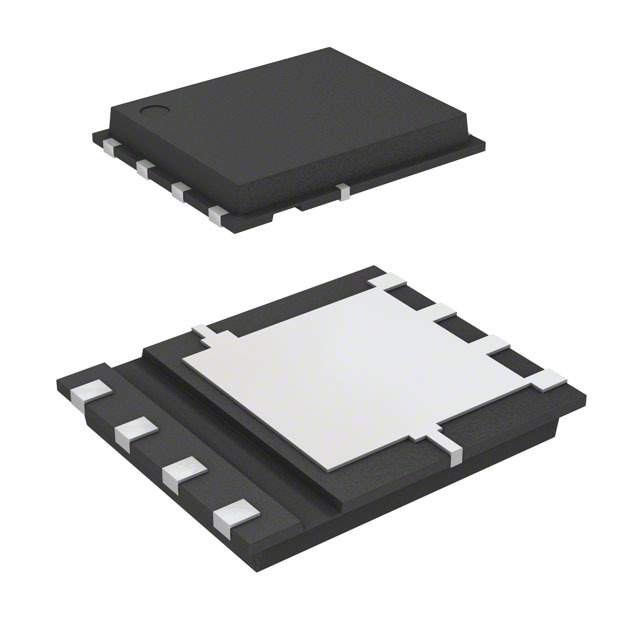

RJK0393DPA-00#J5A Real Image
Same model may have multiple batches, images only for reference.

RJK0393DPA-00#J5A

Part No RJK0393DPA-00#J5A
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 40A 2WPACK
Datasheet
RJK0393DPA-00#J5A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 40A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Max Gate Charge 21nC @ 4.5V
Max Input Capacitance 3270pF @ 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 40W (Tc)
Maximum Rds On at Id,Vgs 4.3 mOhm @ 20A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-WPAK
Dimension 8-PowerWDFN
Win Source Part Number 116320-RJK0393DPA-00#J5A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RJK0393DPA-00#J5A CAD Model

Description

The Renesas Electronics America 116320-RJK0393DPA-00#J5A FET is a single discrete semiconductor product that is used in various electronic devices.

  • Supply and Demand Status: balanced
  • Maximum Power Dissipation: 40W (Tc)
  • Continuous Drain Current: 40A (Ta) @ 25°C
