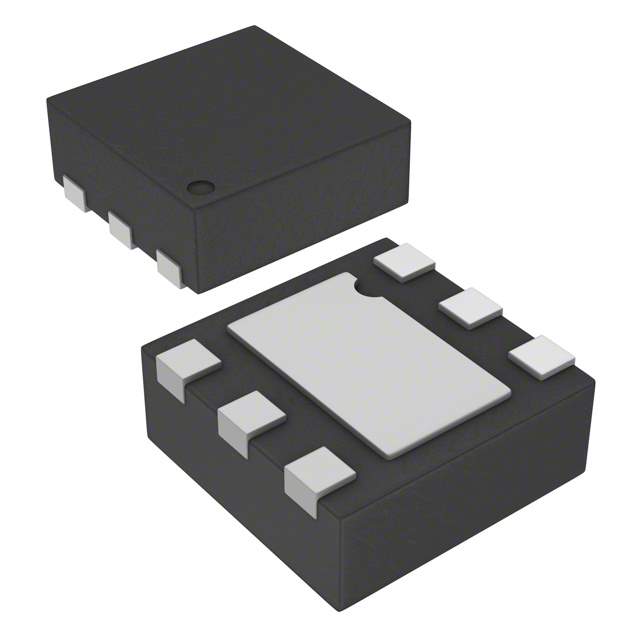

RT9011-KNGQWC Real Image
Same model may have multiple batches, images only for reference.

RT9011-KNGQWC

Part No RT9011-KNGQWC
Manufacturer Richtek USA Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.6V/2.85V 0.3A 6WDFN
Datasheet
RT9011-KNGQWC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Richtek USA Inc.
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 2
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 2.6V, 2.85V
Dropout Voltage-Max 0.33V @ 300mA, 0.33V @ 300mA
Output Current 300mA, 300mA
Operating Supply Current 80μA
PSRR 70dB to 38dB (100Hz to 300kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 2.6V, 2.85V
Voltage - Dropout (Typical) 0.24V @ 300mA
Mounting SMD (SMT)
Case / Package 6-WDFN (1.6x1.6)
Win Source Part Number 062633-RT9011-KNGQWC
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RT9011-KNGQWC CAD Model

Description

The RT9011-KNGQWC from Richtek USA Inc. is a positive fixed regulator topology component.

  • Voltage Dropout: 0.24V @ 300mA
  • Number of Regulators: 2
  • Output Type: fixed
  • Output Current: 300mA, 300mA
  • Output Voltage: 2.6V, 2.85V
  • Control Feature: enable
  • Temperature Range: -40°C to 85°C
  • Maximum Input Voltage: 5.5V
  • Nominal Output Voltage: 2.6V, 2.85V
  • Dropout Voltage-Max: 0.33V @ 300mA, 0.33V @ 300mA
  • Operating Supply Current: 80μA
  • PSRR: 70dB to 38dB (100Hz to 300kHz)
  • Protection Features: over current, over temperature, short circuit
  • RoHS Compliant: Yes
