The Richtek USA Inc. RT9011-SLGQWC is a positive fixed regulator with a voltage dropout of 0.24V @ 300mA.

• Regulators: two regulators and a fixed output type.
• Feature: enable control feature is included
• Output Current: 300mA and 300mA
• Output Voltages: 3.3V and 2.7V

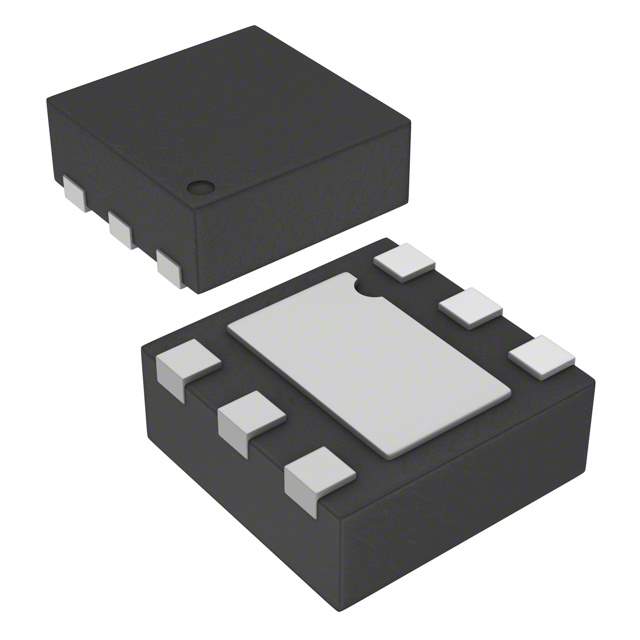

• Case: 6-WDFN (1.6x1.6)
• Maximum Input Voltage: 5.5V
• Nominal Output Voltage: 2.7V and 3.3V
• Dropout Voltage-Max: 0.33V @ 300mA and 0.33V @ 300mA
• Operating Supply Current: 80μA
• PSRR: 70dB to 38dB (100Hz to 300kHz)
• Protection Features: overcurrent, overtemperature, and short circuit.
• Category: integrated circuits section and is currently active.
• Temperature Range: -40°C to 85°C
