Same model may have multiple batches, images only for reference.

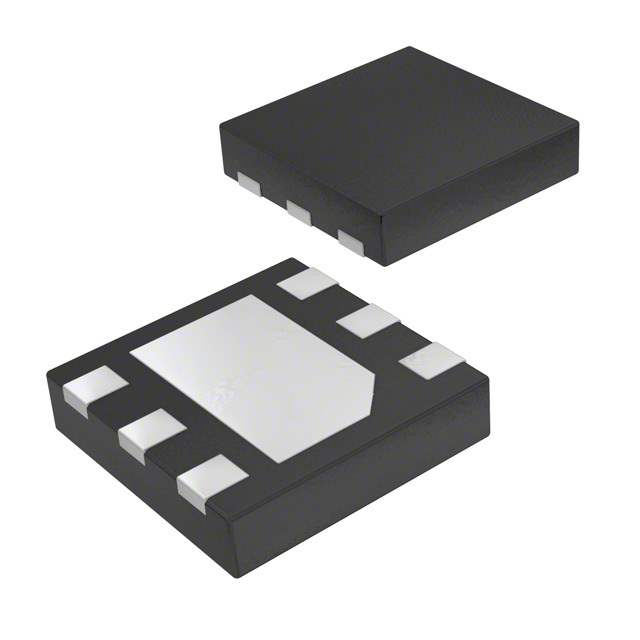

RT9148ZQW Real Image
Same model may have multiple batches, images only for reference.

RT9148ZQW

Part No RT9148ZQW
Manufacturer Richtek USA Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 1 CIRCUIT 6WDFN
Datasheet
RT9148ZQW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Richtek USA Inc.
Package Tape & Reel
Product Status Active
Amplifier Type General Purpose
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 35V/µs
Gain Bandwidth Product 12 MHz
-3db Bandwidth 16 MHz
Current - Input Bias 2 nA
Voltage - Input Offset 2 mV
Current - Supply 4mA
Current - Output / Channel 400 mA
Voltage - Supply Span (Min) 6 V
Voltage - Supply Span (Max) 20 V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-WDFN Exposed Pad
Supplier Device Package 6-WDFN (2x2)
Base Product Number RT9148
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 661515-RT9148ZQW
Ultra Librarian 3D Model Ultra Librarian RT9148ZQW CAD Model

Description

The RT9148ZQW is a general-purpose operational amplifier with rail-to-rail output.

  • Application: Linear amplifiers, instrumentation, OP amps, buffer amps
  • -3db Bandwidth: 16 MHz
  • Gain Bandwidth Product: 12 MHz
  • Supply Voltage: 6V to 20V
  • Current Supply: 4mA
  • Slew Rate: 35V/μs
  • Input Offset Voltage: 2 mV
  • Input Bias Current: 2 nA
  • Current Output: 400 mA
  • Mounting Type: Surface Mount
  • Package Quantity: 2,500
