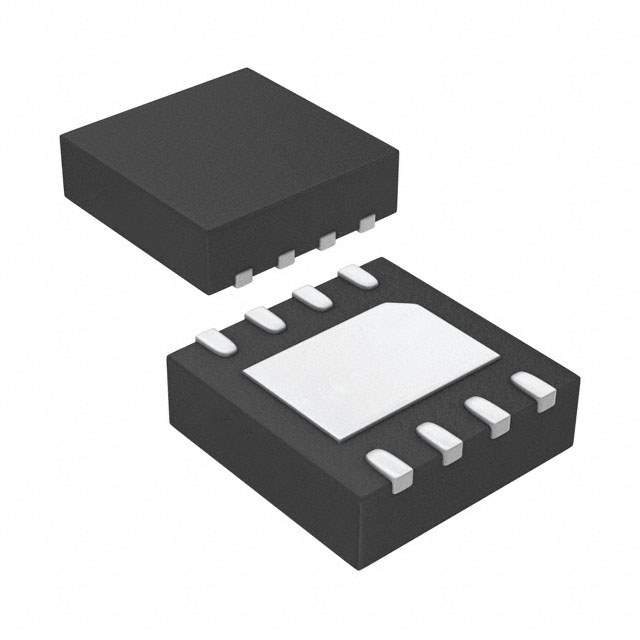

RT9624AZQW Real Image
Same model may have multiple batches, images only for reference.

RT9624AZQW

Part No RT9624AZQW
Manufacturer Richtek USA Inc.
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE 8WDFN / Half-Bridge Gate Driver IC Inverting, Non-Inverting 8-WDFN (3x3)
Datasheet
RT9624AZQW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr Richtek USA Inc.
Package Tape & Reel
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Voltage - Supply 4.5V ~ 13.2V
Logic Voltage - VIL, VIH 0.7V, 3.2V
Input Type Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) 15 V
Rise / Fall Time (Typ) 25ns, 12ns
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-WDFN (3x3)
Base Product Number RT9624
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1028-1228-6,-RT9624AZQW,1028-1228-1,1028-1228-2
Standard Package 1,500
Win Source Part Number 1013472-RT9624AZQW
Ultra Librarian 3D Model Ultra Librarian RT9624AZQW CAD Model

Description

The RT9624AZQW is a PMIC - Gate Drivers component that has a driven configuration of half-bridge.

  • Component Type: PMIC - Gate Drivers
  • Manufacturer: Richtek USA Inc.
  • Product Name: RT9624AZQW
  • Driven Configuration: Half-Bridge
  • Number of Drivers: 2
  • Gate Type: N-Channel MOSFET
  • Mounting Type: SMD (SMT)
  • Input Type: Inverting, Non-Inverting
  • Channel Type: Synchronous
  • Logic Voltage: VIL, VIH: 0.7V, 3.2V
  • High Side Voltage: max (bootstrap) 15V
  • Voltage Supply: 4.5V ~ 13.2V
  • Temperature Range: -40°C ~ 125°C (TJ)
  • Package/Case: 8-WDFN Exposed Pad
