Same model may have multiple batches, images only for reference.

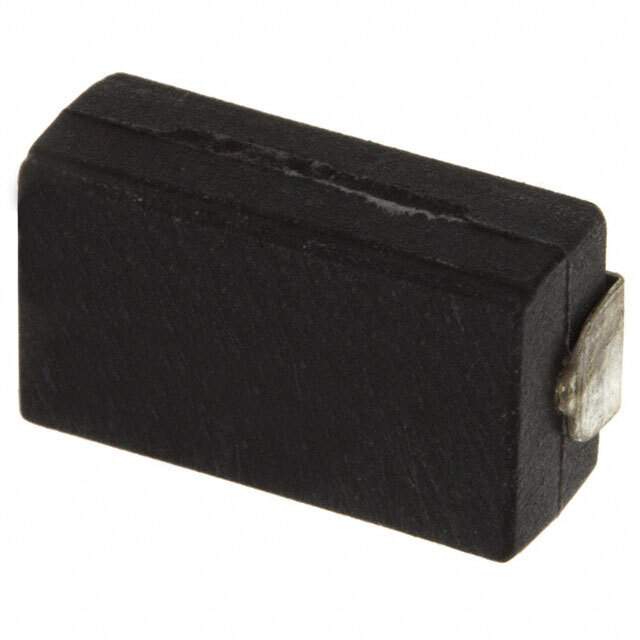

S4-68RF1 Real Image
Same model may have multiple batches, images only for reference.

S4-68RF1

Part No S4-68RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 68 OHM 1% 2W 4525  /  68 Ohms ±1% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-68RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 68 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4 68 OHM 1%,S-4-68FDKR,S-4-68FDKR,696-1252-2,S-4-68FCT,S-4-68FCT,S468OHM1,696-1252-1,S-4-68FTR,696-1252-6,S-4-68FTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237160-S4-68RF1
Ultra Librarian 3D Model Ultra Librarian S4-68RF1 CAD Model

Description

The 1237160-S4-68RF1 resistor is a surface mount chip resistor from Riedon's S series.

  • Resistance: 68 ohms
  • Power Rating: 2W
  • Composition: Wirewound
  • Tolerance: ±1%
  • Features: Flameproof, Moisture-resistant, Pulse-withstanding, and Safe
  • Packaging: Tape and Reel
  • Package/Case: 4525 J-lead
  • Terminations: Two
  • Temperature Coefficient: ±20ppm/°C
  • Operating Temperature Range: -55°C to 275°C
  • Dimensions: 0.449" L x 0.252" W (11.40mm x 6.40mm)
  • REACH: Affected
  • ECCN: EAR99
