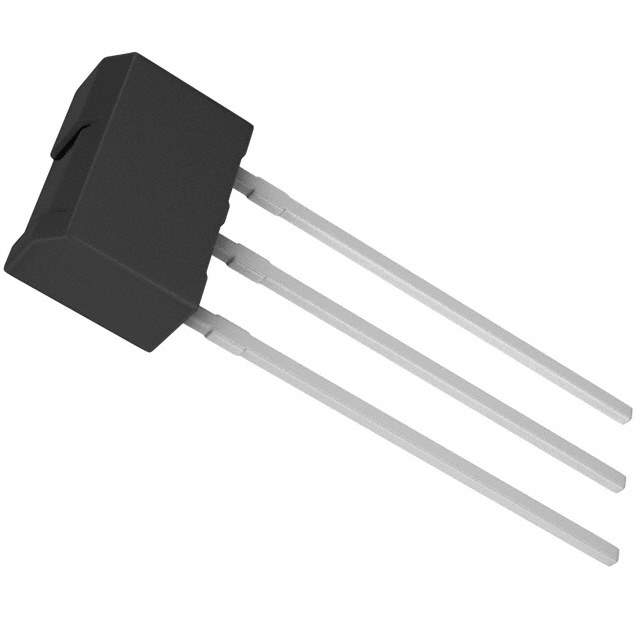

2SB1236ATV2Q Real Image
Same model may have multiple batches, images only for reference.

2SB1236ATV2Q

Part No 2SB1236ATV2Q
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS PNP 160V 1.5A ATV
Datasheet
2SB1236ATV2Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 1.5A
VCEO Maximum Collector-Emitter Breakdown Voltage 160V
Max Vce (sat) 2V @ 100mA, 1A
Collector Cut-off Current(Max) 1μA (ICBO)
Typical Gain (hFE) (Min) 120 @ 100mA, 5V
Maximum Power Dissipation 1W
Frequency - Transition 50MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package ATV
Win Source Part Number 1004280-2SB1236ATV2Q
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SB1236ATV2Q CAD Model

Description

The Rohm Semiconductor 2SB1236ATV2Q is an obsolete (EOL) electronic component.

  • Win Source Part Number: 1004280
  • Type: PNP transistor
  • Current Collector (Max): 1.5A
  • Vce (sat) (Max): 2V @ 100mA, 1A
  • Status: obsolete (EOL)
