Same model may have multiple batches, images only for reference.

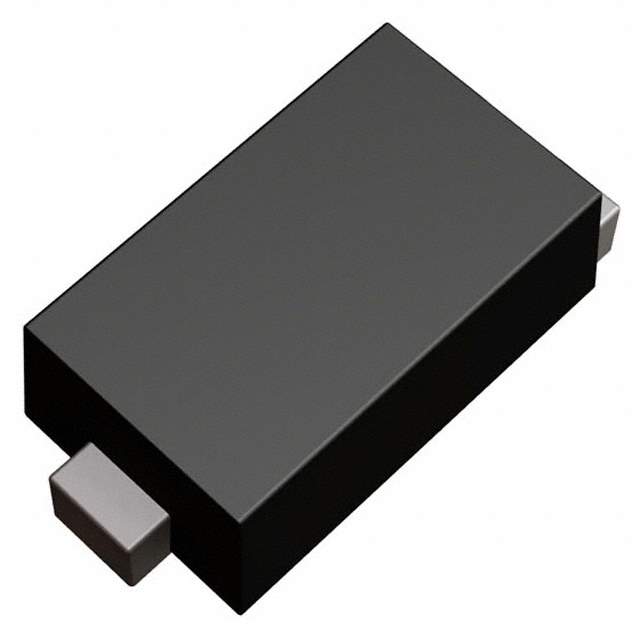

2SC6114T2LR Real Image
Same model may have multiple batches, images only for reference.

2SC6114T2LR

Part No 2SC6114T2LR
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 50V 0.1A VMN3
Datasheet
2SC6114T2LR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 300mV @ 2.5mA, 25mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 180 @ 2mA, 6V
Maximum Power Dissipation 150mW
Frequency - Transition 130MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package VMN3
Win Source Part Number 1004487-2SC6114T2LR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC6114T2LR CAD Model

Description

The Rohm Semiconductor 2SC6114T2LR is a high-frequency NPN bipolar transistor that is designed for use in discrete semiconductor products.

  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Maximum Current Collector: 100mA
  • Transition Frequency: 130MHz
  • Collector Cut-Off Current: 100nA
  • Typical Gain (hFE): 180 @ 2mA @ 6V
  • Minimum Current: 2mA
  • Maximum Power Dissipation: 150mW
  • Package: VMN3
  • Mounting Technology: SMD (SMT)
  • Status: obsolete (EOL)
  • Popularity: medium
