BD70522GUL-EVK-101

Part No BD70522GUL-EVK-101
Manufacturer Rohm Semiconductor
Catalog PMIC - Voltage Regulators - Linear + Switching
Description EVAL BOARD FOR THE BD70522GUL  /  BD70522 series DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Rohm Semiconductor
Package Box
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.2V ~ 3.3V
Current - Output 500mA
Voltage - Input 2.5V ~ 5.5V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part BD70522
Base Product Number BD70522
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Standard Package 1
Win Source Part Number 1049030-BD70522GUL-EVK-101
Ultra Librarian 3D Model Ultra Librarian BD70522GUL-EVK-101 CAD Model

Description

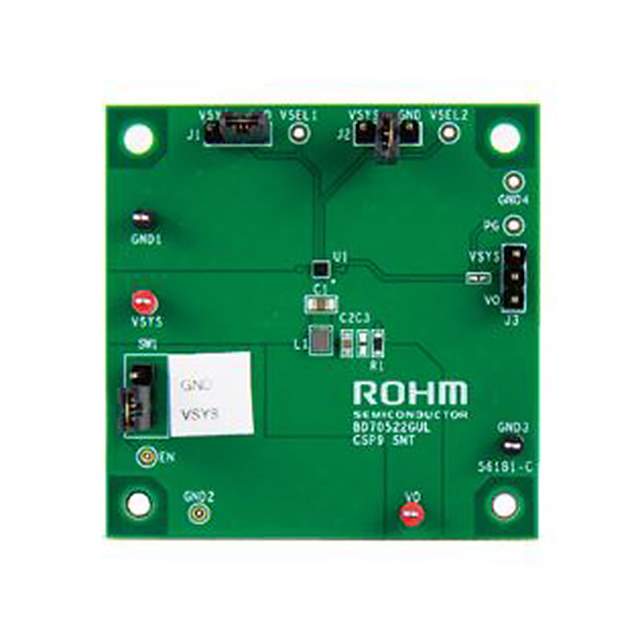

The BD70522GUL-EVK-101 is a fully populated evaluation board that is designed to evaluate the BD70522 DC/DC regulator.

  • Regulator Topology: buck
  • Voltage Output: 1.2V to 3.3V
  • Current Output: 500mA
  • Voltage Input: 2.5V to 5.5V
  • Purpose: DC/DC, step down
  • Outputs: one non-isolated
  • Supplied with: board(s)
  • Frequency Switching: not specified
  • Package: box
  • Standard Package: one
  • Alternative Parts: not specified
  • MSL Level: 1 (unlimited)
  • HTSUS: 8543.70.9860
  • Manufacturer: Rohm Semiconductor
  • Base Product Number: BD70522
