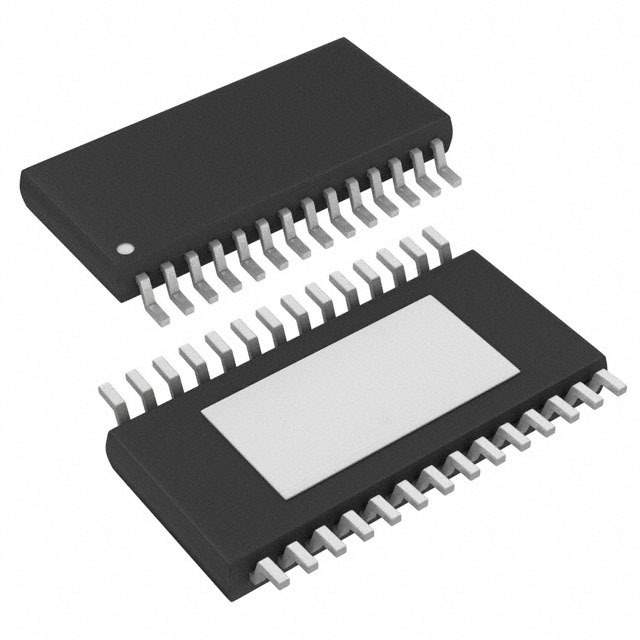

BD7844AEFV-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr Rohm Semiconductor
Package Tape & Reel
Type Linear
Internal Switch(s) Yes
Number of Outputs 16
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 5.5V
Voltage - Output 20V
Current - Output / Channel 80mA
Applications Signage
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP-B
Base Product Number BD7844
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BD7844AEFVE2,BD7844AEFV-E2DKR,BD7844AEFV-E2CT,BD7844AEFV-E2TR
Standard Package 2,500
Win Source Part Number 971133-BD7844AEFV-E2
Ultra Librarian 3D Model Ultra Librarian BD7844AEFV-E2 CAD Model

Description

The BD7844AEFV-E2 from Rohm Semiconductor is an integrated circuit designed for use as an LED driver.

  • Outputs: 16
  • Maximum Output Current: 80mA per channel
  • Packaging: tape and reel
  • Operating Temperatures: -40°C and 85°C
  • Type: linear LED driver
  • Output Voltage: 20V
  • Applications: signage
  • Internal Switch: yes
  • Package Feature: exposed pad
  • Maximum Current: 2.9A per contact
