Same model may have multiple batches, images only for reference.

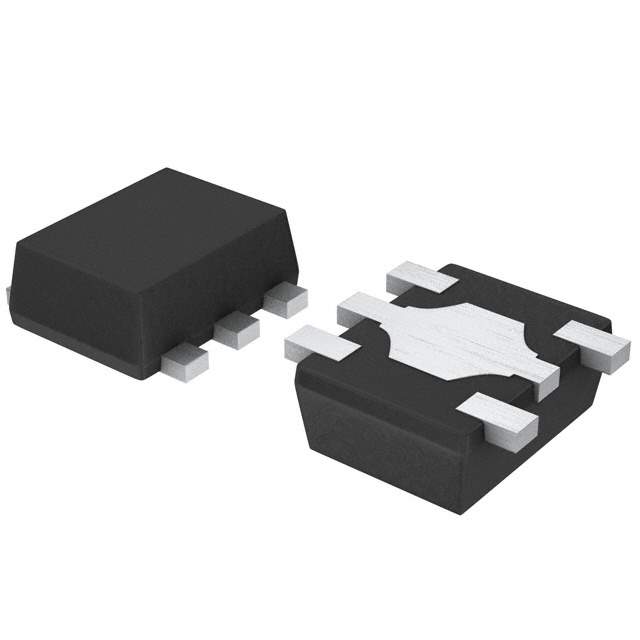

BH30PB1WHFV-TR Real Image
Same model may have multiple batches, images only for reference.

BH30PB1WHFV-TR

Part No BH30PB1WHFV-TR
Manufacturer Rohm Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3V 0.15A 5HVSOF
Datasheet
BH30PB1WHFV-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 3V
Dropout Voltage-Max 0.6V @ 150mA
Output Current 150mA
Operating Supply Current 4μA to 40μA
PSRR 60dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Soft Start
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package HVSOF5
Win Source Part Number 1023373-BH30PB1WHFV-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BH30PB1WHFV-TR CAD Model

Description

The Rohm Semiconductor BH30PB1WHFV-TR integrated circuit is a high-quality component that is perfect for use in a variety of applications.

  • Output: fixed output
  • Feature: enable control feature
  • Maximum Input Voltage: 5.5V
  • Nominal Output Voltage (min/fixed): 3V
  • Dropout Voltage-Max: 0.6V @ 150mA
  • Operating Supply Current: 4μA to 40μA
  • PSRR: 60dB (1kHz)
  • Protection Features: over current, over temperature, and soft start
  • Package: HVSOF5 case
  • Temperature Range: -40°C to 85°C
