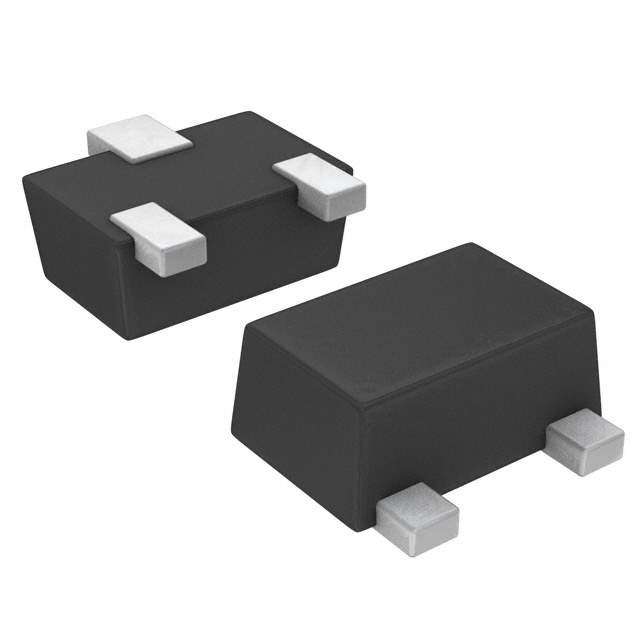

The DTC014TM is an NPN pre-biased transistor manufactured by Rohm Semiconductor. It integrates bias resistors within the transistor package to simplify circuit design. This eliminates the need for external resistors, saving board space and reducing component count. This device is well-suited for applications requiring small signal amplification or switching.

Applications:

• Digital circuit control
• Inverter circuits
• Driving LEDs and relays
• Switching applications
• Amplification circuits

Features:

• Built-in bias resistors (R1 = 10 kΩ, R2 = Open)
• Reduces component count
• Simplifies circuit design
• Available in a small SOT-23 package
• Lead-free finish; RoHS Compliant

Benefits:

• Lower BOM cost
• Smaller PCB footprint
• Improved circuit reliability
• Simplified assembly
• Easier inventory management

Additional Details:
