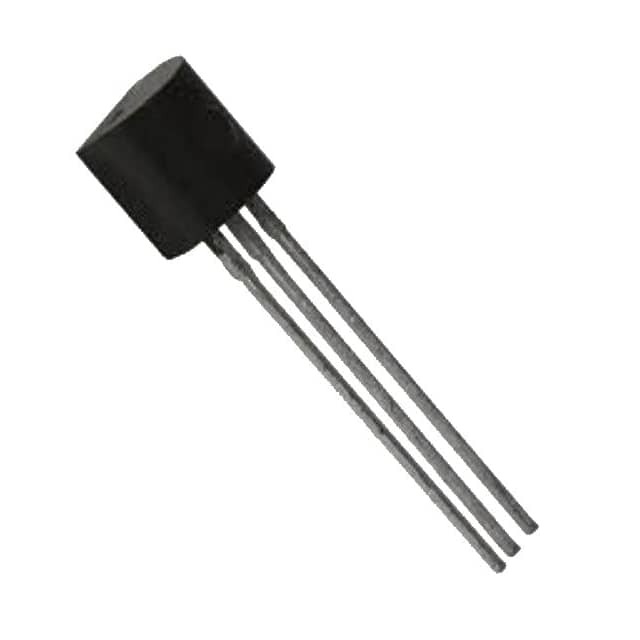

The 2SA1346-SSH-AC is a high-performance PNP transistor developed by ON Semiconductor, a leading provider of semiconductor solutions. This transistor is designed for use in a variety of electronic applications, including audio frequency amplifiers and drivers utilizing complementary or quasi-complementary circuits.

Key Features

• High Current Capacity: Capable of handling high levels of current, making it suitable for power amplification tasks.
• Low Saturation Voltage: Offers efficient operation by minimizing voltage drop during saturation, leading to reduced power loss and improved performance.
• Excellent Gain Characteristics: Provides stable gain over a wide range of operating conditions, which is essential for consistent amplifier performance.
• Complementary PNP Type: The 2SA1346-SSH-AC is the PNP counterpart to NPN transistors, allowing for the creation of complementary or quasi-complementary circuits that are advantageous in audio applications.

Applications

The versatile nature of the 2SA1346-SSH-AC makes it suitable for a wide array of applications, particularly where high-quality audio performance is required. Some of the common applications include:

• Audio Frequency Amplifiers
• Driver Stages in Hi-Fi Amplifiers
• Power Amplifiers
• Signal Processing Circuits

Product Specifications

ON Semiconductor's commitment to quality ensures that the 2SA1346-SSH-AC transistor meets the rigorous standards required for electronic components. With its robust design and reliable performance, this transistor is an excellent choice for designers who require the best in audio amplification and signal processing.
