The Rohm Semiconductor QST9 TR is an active discrete semiconductor product with a frequency - transition of 320MHz and transistor polarity of 2 PNP (Dual).

• Popularity: Medium
• Supply and Demand Status: Balance
• Temperature Range - Operating: 150°C (TJ)

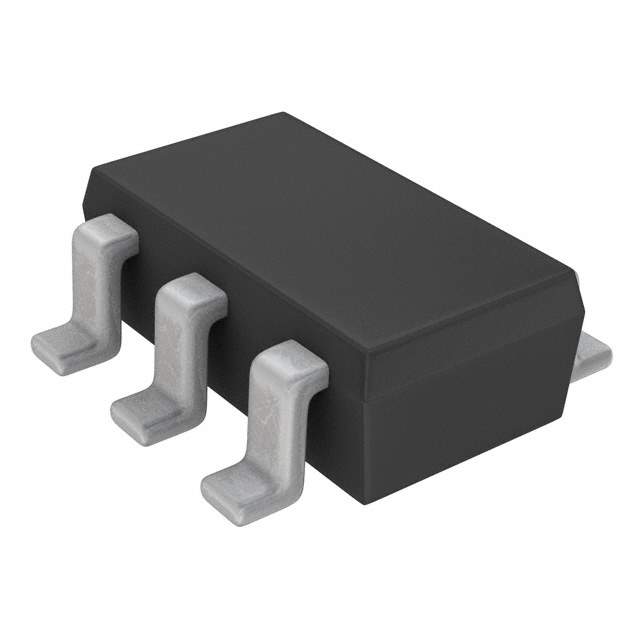

• Case / Package: TSMT6 (SC-95)
• Maximum Current Collector: 1A
• VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
• Max Vce (sat): 350mV @ 25mA, 500mA
• Collector Cut-off Current (Max): 100nA (ICBO)
• Typical Gain (hFE) (Min): 270 @ 100mA, 2V
• Maximum Power Dissipation: 1.25W
