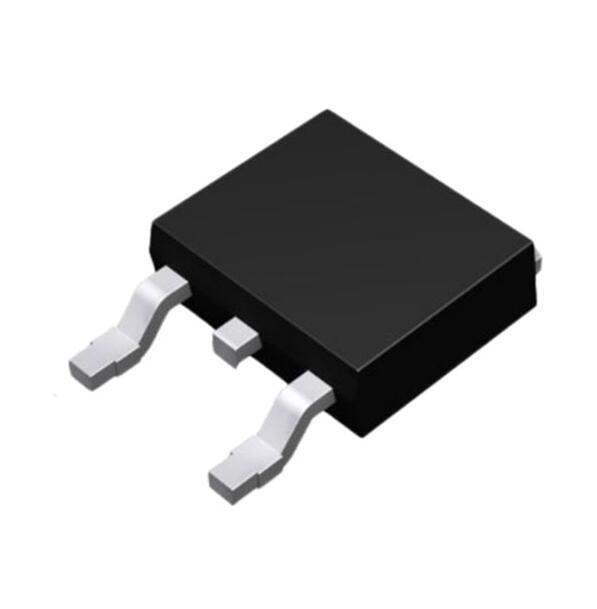

Same model may have multiple batches, images only for reference.

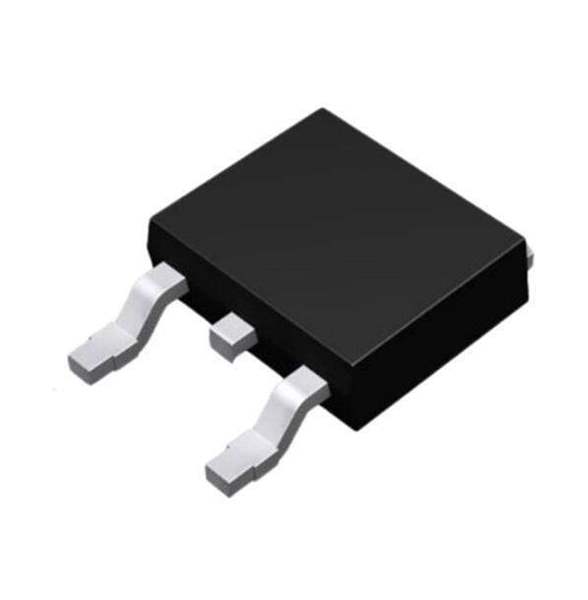

RD3L01BATTL1Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RD3L01BATTL1

Part No RD3L01BATTL1
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description PCH -60V -10A POWER MOSFET - RD3
Datasheet
RD3L01BATTL1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197395-RD3L01BATTL1
Win Source Part Number Cross
Manufacturer Rohm Semiconductor
Category Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Rds On (Max) @ Id, Vgs 84mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 15.2 nC @ 10 V
Ultra Librarian 3D Model Ultra Librarian RD3L01BATTL1 CAD Model

Description

The Rohm Semiconductor MOSFET is a P-channel transistor designed for various electronic applications.

  • On-Resistance: 84mOhm @ 10A and 10V
  • Gate Threshold Voltage: 2.5V @ 1mA
  • Gate Charge: 15.2nC @ 10V
  • Package: tape and reel
  • Product Status: active
  • Manufacturer: Rohm Semiconductor
  • Type: P-channel MOSFET
