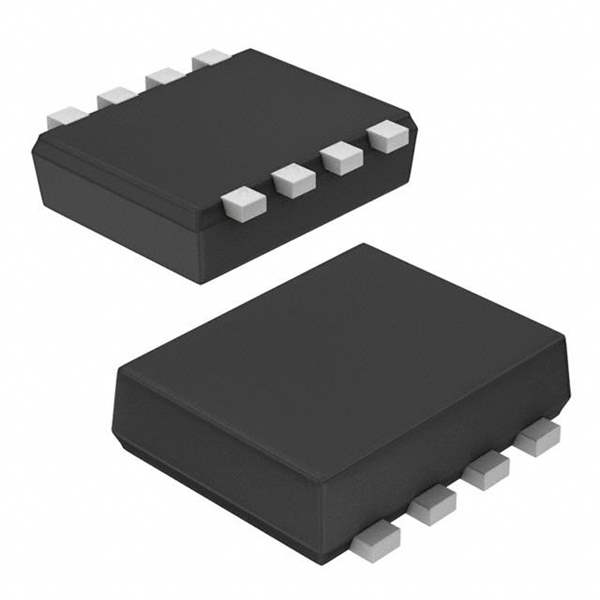

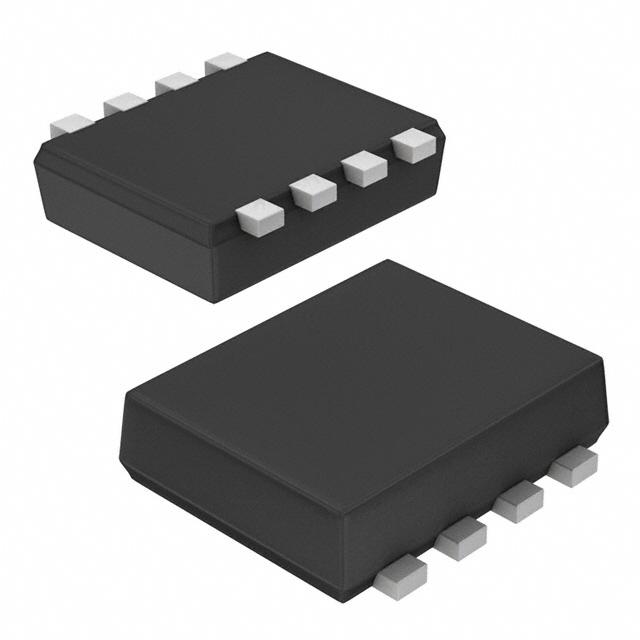

RQ1C075UNTR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RQ1C075UNTR

Part No RQ1C075UNTR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 7.5A TSMT8
Datasheet
RQ1C075UNTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 18nC @ 4.5V
Max Input Capacitance 1400pF @ 10V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 700mW (Ta)
Maximum Rds On at Id,Vgs 16 mOhm @ 7.5A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TSMT8
Dimension 8-SMD, Flat Lead
Win Source Part Number 097446-RQ1C075UNTR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RQ1C075UNTR CAD Model

Description

The RQ1C075UNTR is an N-channel MOSFET from Rohm Semiconductor.

  • Maximum Power Dissipation: 700mW
  • Breakdown Voltage: 20V
  • Package: surface mount package
  • Maximum Rds on: 16 mOhm @ 7.5A and 4.5V
