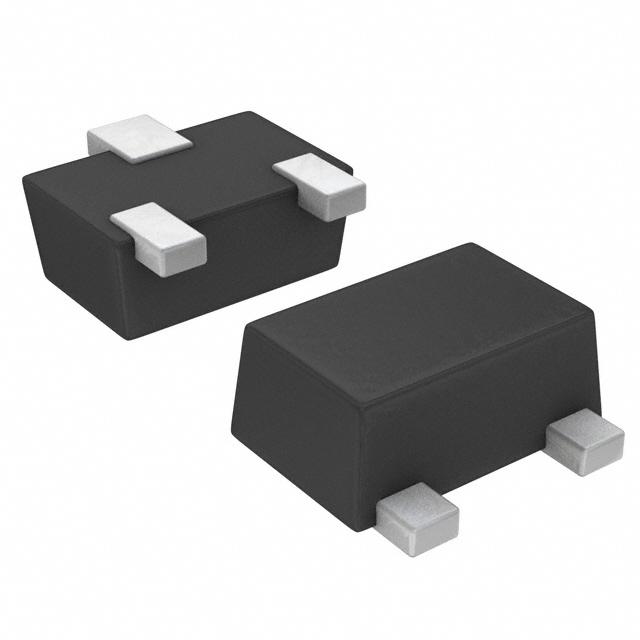

RSM002P03T2L Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RSM002P03T2L

Part No RSM002P03T2L
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 200MA VMT3
Datasheet
RSM002P03T2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V
Gate-Source Threshold Voltage 2.5V @ 1mA
Max Input Capacitance 30pF @ 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 150mW (Ta)
Maximum Rds On at Id,Vgs 1.4 Ohm @ 200mA, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package VMT3
Dimension SOT-723
Win Source Part Number 027522-RSM002P03T2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RSM002P03T2L CAD Model

Description

Rohm Semiconductor's RSM002P03T2L is a P-channel MOSFET.

  • Type: surface-mount device
  • Commonly used in: electronic circuits for power switching applications
  • Maximum Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 200mA
  • Ideal for: low-power applications
  • Supply and Demand Status: balanced
