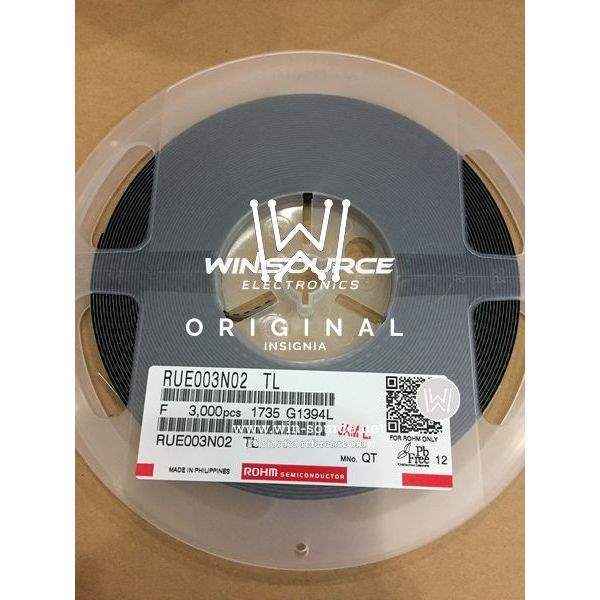

RUE003N02TL Rohm Semiconductor RUE003N02TL real image5236 RUE003N02TL label picture
Same model may have multiple batches, images only for reference.
RUE003N02TL Rohm Semiconductor RUE003N02TL real image5236 RUE003N02TL label picture
RUE003N02TL Rohm Semiconductor RUE003N02TL real image5236 RUE003N02TL label picture
Same model may have multiple batches, images only for reference.

RUE003N02TL

Part No RUE003N02TL
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH Si 20V 0.3A 3-Pin EMT T/R / MOSFET N-CH 20V 300MA EMT3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4V
Gate-Source Threshold Voltage 1V @ 1mA
Max Input Capacitance 25pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 150mW (Ta)
Maximum Rds On at Id,Vgs 1 Ohm @ 300mA, 4V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package EMT3
Dimension SC-75, SOT-416
Win Source Part Number 027649-RUE003N02TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Computers & Computer Peripherals, Consumer Electronics
Family Name RUE003N02
Introduction Date December 03, 2007
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian RUE003N02TL CAD Model

Description

The RUE003N02TL MOSFET from Rohm Semiconductor is a high-performance N-Channel polarity MOSFET that is ideal for use in a variety of applications.

  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 300mA @ 25°C
  • Power Dissipation: Up to 150mW (Ta)
  • Gate-Source Threshold Voltage: 1V @ 1mA
  • Maximum Input Capacitance: 25pF @ 10V
  • Package: EMT3 package with SC-75, SOT-416 dimensions
  • Mounting: Easy to mount on a printed circuit board
  • Popular Choice for: Industrial, computers, and computer peripherals, as well as consumer electronics
