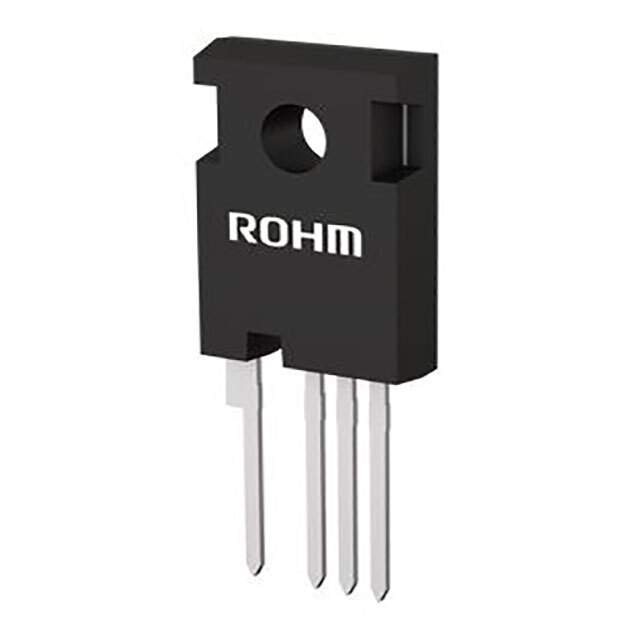

Same model may have multiple batches, images only for reference.

SCT3080ARC14

Name: SCT3080ARC14
Brand: Rohm Semiconductor
SKU: 1278197
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SCT3080ARC14
Manufacturer	Rohm Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	SCT3080ARC14 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Rohm Semiconductor
Package	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	18V
Rds On (Max) @ Id, Vgs	104mOhm @ 10A, 18V
Vgs(th) (Max) @ Id	5.6V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	48 nC @ 18 V
Vgs (Max)	+22V, -4V
Input Capacitance (Ciss) (Max) @ Vds	571 pF @ 500 V
Power Dissipation (Max)	134W
Temperature Range - Operating	175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
Base Product Number	SCT3080
Other Names	SCT3080ARC14,846-SCT3080ARC14
Standard Package	30
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1278197-SCT3080ARC14
Ultra Librarian 3D Model	Ultra Librarian SCT3080ARC14 CAD Model

Alternative Products

Description

The SCT3080ARC14 is a N-channel SiCFET transistor manufactured by Rohm Semiconductor.

Product: Discrete semiconductor product
Drain to Source Voltage: 650V
Continuous Drain Current: 30A @ 25°C
Rds On: 104mOhm @ 10A and 18V
Maximum Gate Charge: 48nC @ 18V
Input Capacitance: 571pF @ 500V
Maximum Drive Voltage: +22V and -4V
Package: TO-247-4
Maximum Power Dissipation: 134W
Suitable for: Automotive and industrial applications
