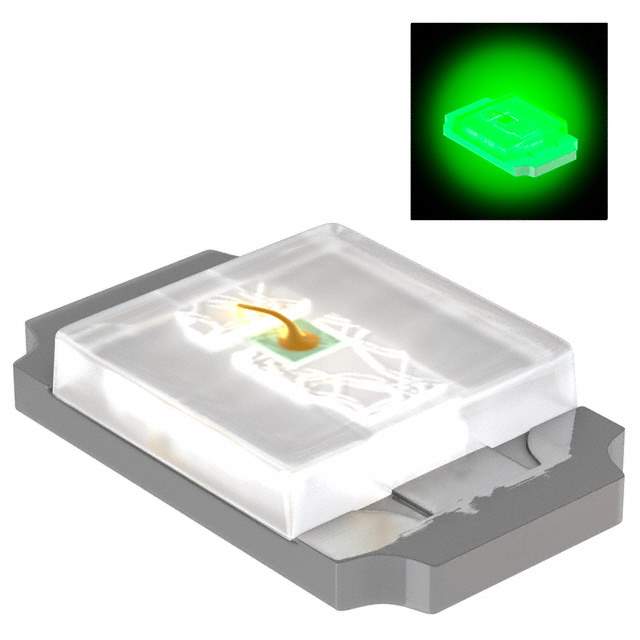

The SML-P12PTT86 K is a surface-mount LED from Rohm Semiconductor, designed for applications requiring a compact and efficient light source. It is commonly used for indication and backlighting in various electronic devices.

Applications:

• Status indicators in consumer electronics
• Backlighting for LCD screens and keypads
• Indicator lights in industrial equipment
• Automotive interior lighting
• Medical device indicators

Features:

• Compact SMD (Surface Mount Device) package
• High luminous intensity
• Wide viewing angle
• Long operating life
• Low power consumption
• RoHS compliant

Benefits:

• Space-saving design allows for easy integration into small devices.
• Bright and clear indication improves user experience.
• Wide viewing angle ensures visibility from different perspectives.
• Long operating life reduces maintenance costs.
• Low power consumption contributes to energy efficiency.
• Environmentally friendly due to RoHS compliance.

Technical Specifications:

Detailed technical specifications for the SML-P12PTT86 K, such as forward voltage, luminous intensity, and peak wavelength, can be found in the official Rohm Semiconductor datasheet. Typically, these LEDs exhibit a forward voltage in the range of 1.8 to 2.2V, with luminous intensity varying based on the specific color and binning. The SMD package is designed for automated assembly, making it suitable for high-volume manufacturing. Proper soldering techniques and thermal management are crucial for ensuring optimal performance and reliability. It is important to consult the datasheet for precise electrical, optical, and thermal characteristics, as well as application guidelines.

The SML-P12PTT86 K is supplied on tape and reel for easy handling with pick-and-place equipment. Designers should always refer to the latest datasheet for the most accurate and up-to-date specifications.
