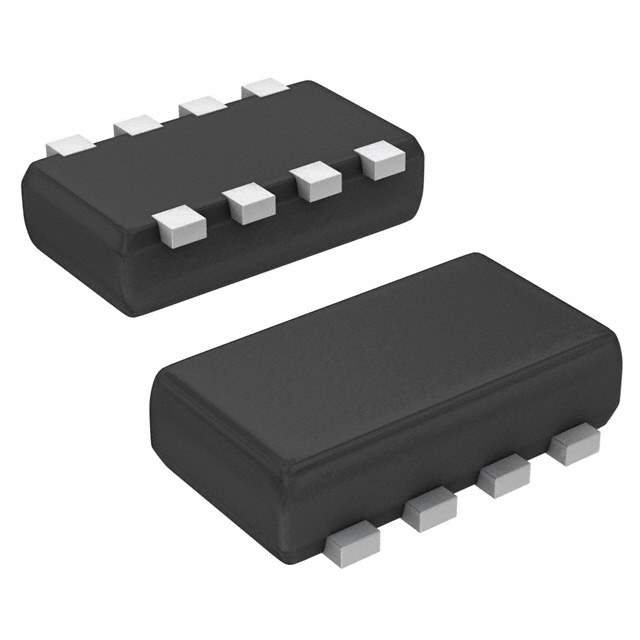

The TT8J11 is a silicon N-channel MOSFET manufactured by Rohm Semiconductor. This transistor is designed for high-speed switching applications and is often used in DC-DC converters and load switches. Its low on-resistance and gate capacitance contribute to efficient operation and minimal power loss.

Applications

• DC-DC converters
• Load switches
• Power management circuits
• High-speed switching circuits
• Motor control applications

Features

• Low on-resistance (RDS(on))
• Low gate capacitance
• High-speed switching
• Surface mount package
• RoHS compliant

Benefits

• Improved energy efficiency
• Reduced power dissipation
• Compact design for space-constrained applications
• Enhanced system reliability
• Environmentally friendly

Additional Details

The TT8J11 typically has a drain-source voltage (VDS) rating of 30V and a continuous drain current (ID) of approximately 3A. Its low on-resistance (RDS(on)), usually around 0.1 ohms at VGS = 10V, minimizes conduction losses. It is commonly available in a small SOT-23 package. The gate threshold voltage (VGS(th)) is generally around 1.5V. This MOSFET is optimized for applications requiring fast switching and low power consumption. Rohm Semiconductor's stringent quality control ensures high reliability and consistent performance. Its compact size and efficient performance make it a suitable choice for various electronic designs.
