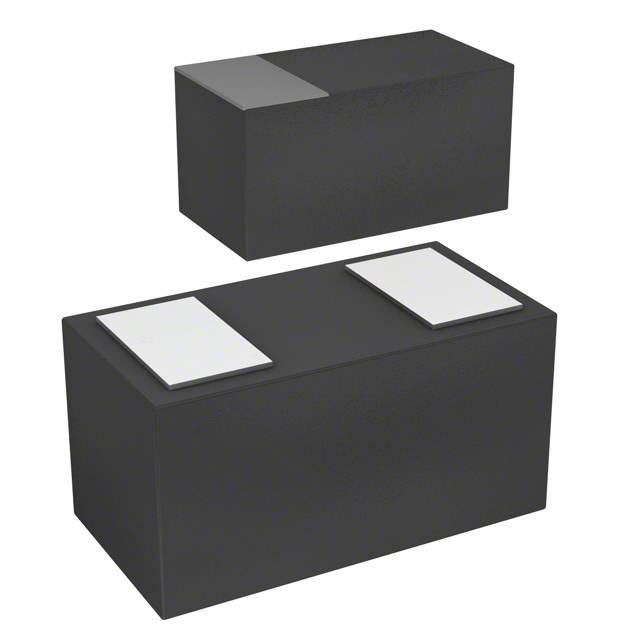

VS5V0BL1HST15R Real Image
Same model may have multiple batches, images only for reference.

VS5V0BL1HST15R

Part No VS5V0BL1HST15R
Manufacturer Rohm Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18VC DSN0603-2  /  18V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2, SOD-962, SMD0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 18V
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power - Peak Pulse 36W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2, SOD-962, SMD0603
Base Product Number VS5V0
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 846-VS5V0BL1HST15RTR,846-VS5V0BL1HST15RCT,846-VS5V0BL1HST15RDKR
Standard Package 15,000
Win Source Part Number 1104200-VS5V0BL1HST15R
Ultra Librarian 3D Model Ultra Librarian VS5V0BL1HST15R CAD Model

Description

The VS5V0BL1HST15R is a zener diode manufactured by Rohm Semiconductor.

  • Component: bidirectional
  • Voltage Breakdown: 6V
  • Voltage Clamping: 18V @ Ipp
  • Reverse Standoff Voltage: 5V (Max)
  • Power Peak Pulse: 36W
  • Current Peak Pulse: 2A (8/20µs)
