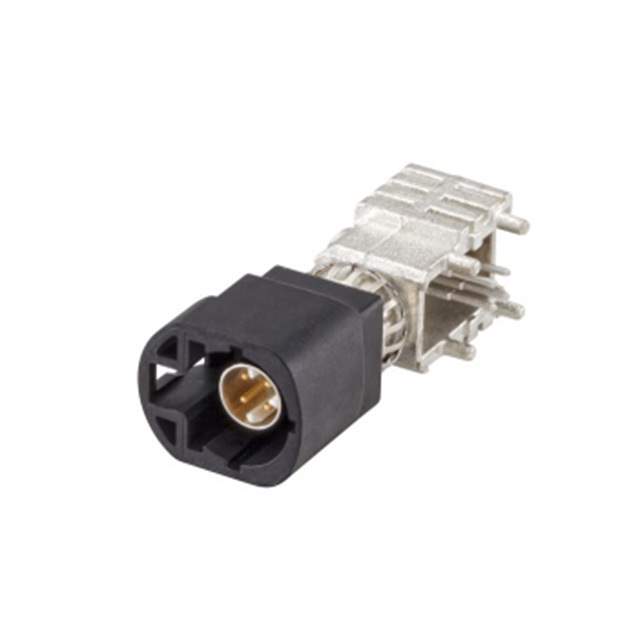

D4S20Y-40MA5-A Real Image
Same model may have multiple batches, images only for reference.

D4S20Y-40MA5-A

Part No D4S20Y-40MA5-A
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code A
Housing Color Black
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S20Y
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1534-6,1868-1534-1,1868-1534-2
Standard Package 190
Win Source Part Number 1193306-D4S20Y-40MA5-A
Ultra Librarian 3D Model Ultra Librarian D4S20Y-40MA5-A CAD Model

Description

The D4S20Y-40MA5-A is a coaxial connector that is designed for use in RF applications.

  • Type: Plug male pin
  • Fastening Type: Latch lock
  • Package: Tape and reel
  • Mounting: Through-hole and right angle
