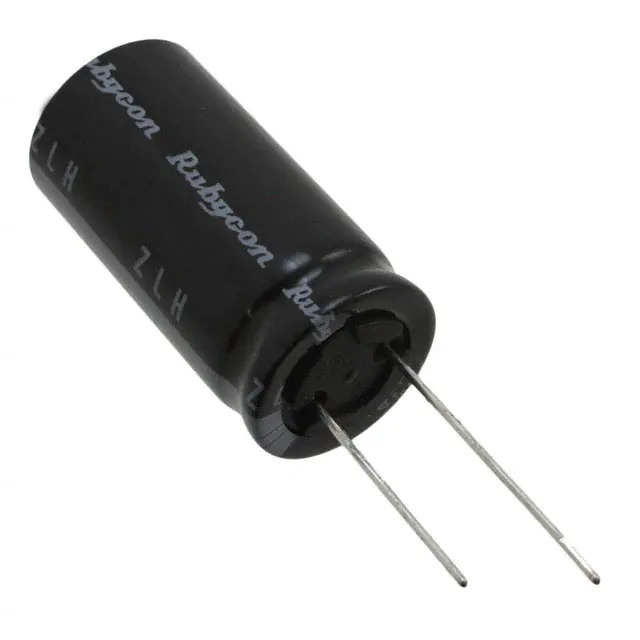

100ZLH560MEFC18X31.5 Rubycon
Same model may have multiple batches, images only for reference.

100ZLH560MEFC18X31.5

Part No 100ZLH560MEFC18X31.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 100V RADIAL / 560 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.359 A @ 120 Hz
Ripple Current @ High Frequency 2.47 A @ 100 kHz
Impedance 27 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.319" (33.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358129-100ZLH560MEFC18X31.5
Ultra Librarian 3D Model Ultra Librarian 100ZLH560MEFC18X31.5 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a reliable component designed for general-purpose applications from Rubycon.

  • Capacitance: 560 μF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Ripple Current: 1.359 A @ low frequency (120 Hz) and 2.47 A @ high frequency (100 kHz)
  • Lead Spacing: 0.295" (7.50mm)
  • Size: 0.709" Dia (18.00mm)
  • Height: 1.319" (33.50mm)
  • Lifetime: 10,000 hours @ 105°C
  • Polarized: Yes
  • Impedance: 27 mOhms
  • Series: ZLH
