Same model may have multiple batches, images only for reference.

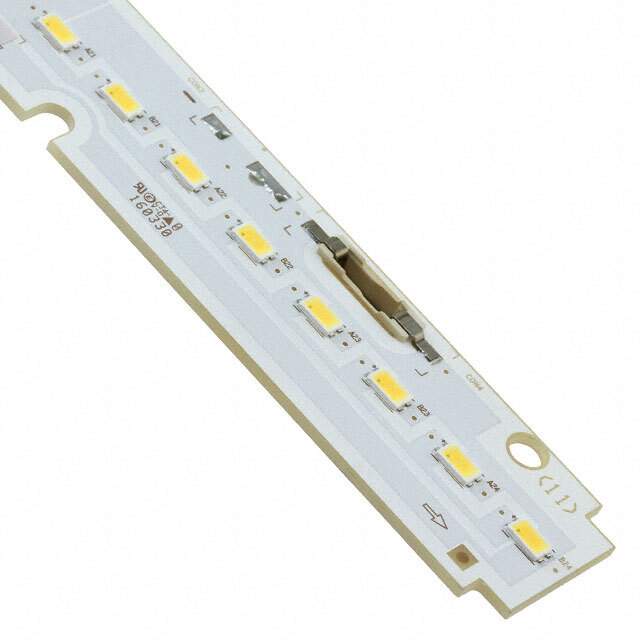

SI-B8U14256SWW Real Image
Same model may have multiple batches, images only for reference.

SI-B8U14256SWW

Part No SI-B8U14256SWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED SLIM 3500K 2210LM BACK WIRE / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B8U14256SWW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-S562F
Package Tray
Product Status Not For New Designs
Type LED Module
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2210lm (Typ)
Current - Test 800mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 17.6V
Lumens/Watt @ Current - Test 157 lm/W
Current - Max 1.44A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 559.70mm L x 23.80mm W
Height 7.40mm
Lens Type Flat
Base Product Number SI-B8
Standard Package 128
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240393-SI-B8U14256SWW
Ultra Librarian 3D Model Ultra Librarian SI-B8U14256SWW CAD Model

Description

The LT-S562F series LED lighting module is a linear light strip configuration module with a viewing angle of 115 degrees.

  • Viewing Angle: 115 degrees
  • Forward Voltage: 17.6V
  • Maximum Current: 1.44A
  • Color Temperature: 3500K with a 3-step MacAdam ellipse
  • Luminous Efficacy: 157lm/W @ the current test
  • Color Rendering Index (CRI): 80
  • Package Dimension: 559.70mm L x 23.80mm W
  • Height: 7.40mm
  • Operating Temperature Range: -40°C to 85°C
  • Ideal For: LED lighting applications in the electronics industry
