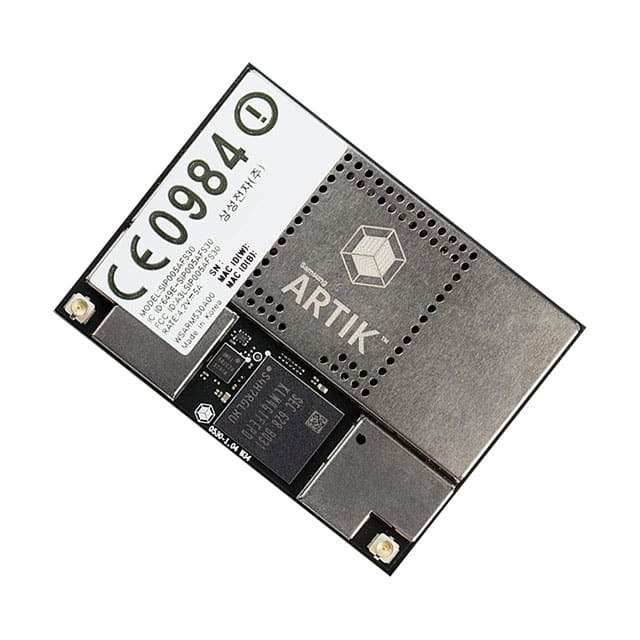

SIP-005AFS301
Same model may have multiple batches, images only for reference.

SIP-005AFS301

Part No SIP-005AFS301
Manufacturer Samsung
Catalog RF Transceiver Modules
Description RF TXRX MODULE BLE WIFI U.FL SMD / Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Samsung
Series ARTIK
Package Tray
Product Status Obsolete
Programmable Not Verified
RF Family/Standard Bluetooth, WiFi
Protocol 802.11a/b/g/n, Bluetooth v4.2
Frequency 2.4GHz
Data Rate 54Mbps
Power - Output 15dBm
Sensitivity -97dBm
Serial Interfaces I²C, I²S, JTAG, SPI, UART, USB
Antenna Type Antenna Not Included, U.FL
Memory Size 4GB Flash, 512MB DRAM
Voltage - Supply 4.2V
Mounting Type Surface Mount
Temperature Range - Operating -25°C ~ 85°C
Package / Case Module
Standard Package 15 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 933813-SIP-005AFS301
Ultra Librarian 3D Model Ultra Librarian SIP-005AFS301 CAD Model

Description

The ARTIK RF Transceiver Module is a wireless communication module from Samsung.

  • Category: RF and Wireless
  • Application: RF Transceiver
  • Frequency: 2.4GHz
  • Protocols: 802.11a/b/g/n and Bluetooth v4.2
  • Data Rate: 54Mbps
  • Memory: 4GB Flash and 512MB DRAM
  • Antenna: Not Included, U.FL type
  • Power Output: 15dBm
  • Sensitivity: -97dBm
  • Serial Interfaces: I²C, I²S, JTAG, SPI, and UART
  • Voltage Supply: 4.2V
  • Temperature Range: -25°C to 85°C
  • Mounting: Surface Mount
  • Package: Tray
  • Status: Obsolete
